Product Details
Place of Origin: China
Brand Name: CHNSpec
Certification: CE Certificate
Model Number: FS6B
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Carton box with foam package
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 1000 per month1、Product features
Merged Spectral Range: |
400-2500nm |
Operating Temperature: |
0-40°C |
Storage Temperature: |
0-50°C |
Camera Interface: |
USB3.0 |
Merged Spectral Range: |
400-2500nm |
Operating Temperature: |
0-40°C |
Storage Temperature: |
0-50°C |
Camera Interface: |
USB3.0 |

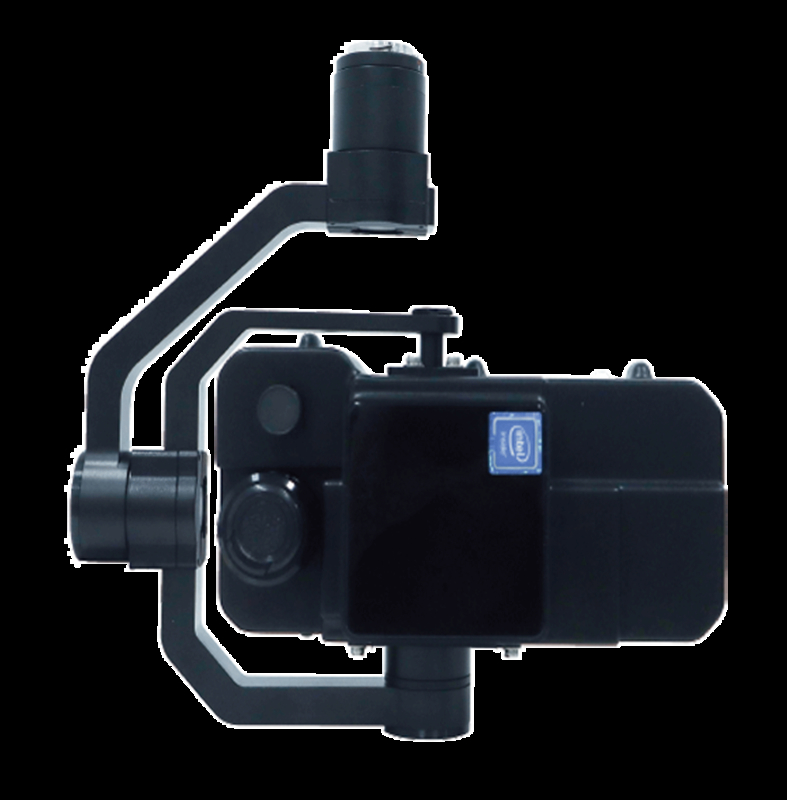

The full-spectrum airborne hyperspectral imaging system covers a range of 400– 2500 nm, integrating VISNIR (400–1000 nm, 1,920 spatial channels, 1,200 spectral channels, <2.5 nm resolution) and SWIR (900–2500 nm, 640 spatial channels, 250 spectral channels, <10 nm resolution) cameras. Using a high-efficiency transmissive grating module, highly sensitive area-array sensors, achromatic lenses, and an ultra-lightweight body, it is designed for applications such as military camouflage and anti-camouflage, soil composition analysis, mineral exploration, precision agriculture and forestry, and ecological/environmental monitoring.
Technical Parameters
|
Spectral
Range
|
VISNIR(400-1000nm) | SWIR(900-2500nm) |
|
Merged Spectral
Range
|
400-2500nm | |
|
Dispersive
Element
|
Transmission Grating | |
|
Number of Spectral
Channels
|
≥1200 | ≥250 |
|
Number of Merged Spectral
Channels
|
≥1450
|
|
|
Number of Spatial
Channels
|
≥1920 | ≥640 |
|
Number of Merged Spatial
Channels
|
≥640
|
|
|
Spectral Sampling
Interval
|
≤0.6nm |
≤6.5nm
|
|
Spectral Resolution
(FWHM)
|
≤2.5nm | ≤10nm |
|
F-number
|
F/2.5 | F/2.5 |
|
Detector
Type
|
CMOS | MCT |
|
Senso
Size
|
≥11.3×7.1mm | ≥9.6×7.68mm |
|
Pixel
Size
|
≥5.86um×5.86um | ≥15um×15um |
|
Effective
Bit Depth
|
≥12bits | ≥14bits |
|
Lens Focal
Length
|
25mm | 25mm |
|
Field of
View
|
25.36°@f=25mm | 21.7°@f=25mm |
|
Merged
Field of View
|
21.7°@f=25mm | |
|
Instantaneous
Field of View
|
0.23mrad@f=25mm | 0.59mrad@f=25mm |
|
Merged Instantaneous Field of
View
|
0.59mrad@f=25mm
|
|
|
Cooling
Method
|
Internal Air Cooling | Stirling Cooling |
|
Effective Slit
Length
|
≥11.3mm | ≥9.6mm |
|
Slit
Width
|
≤25um | |
|
Pixel Binning
Mode
|
1×1,2×2,4×4 | 1×1 |
|
Frame
Rate
|
128fps | 200fps |
|
Power
Consumption
|
≤72W | |
|
Operating
Temperature
|
0-40°C | |
|
Storage
Temperature
|
0-50°C | |
|
Camera
Interface
|
USB3.0 | |
|
Built-in Embedded Data
Acquisition & Processing Unit
|
Built-in Embedded Processor with 512 GB SSD Storage
|
|
|
Application
Software
|
FIGSPEC UAV, FIGSPEC Merge, FIGSPEC Studio | |
|
Data
Format
|
Compatible with *.spe, *.hdr, *.scp formats
|
|
|
Calibration
Method
|
Reflectance Calibration, Regional Calibration (supports batch processing)
|
|
|
Observation
Method
|
Real-time monitoring of UAV sampling location, hyperspectral images, and spectral data via ground station
|
|
|
Operation Mode
|
Easy to operate, no professional UAV pilot required, supports single-person operation
|
|
