Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: Color Matching
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Standard Export Package
Delivery Time: 5-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 per month
Usage: |
Paint And Coating Color Matching |
Interface: |
USB |
Size: |
8x5x2cm |
Usage: |
Paint And Coating Color Matching |
Interface: |
USB |
Size: |
8x5x2cm |
Printing Ink Color Matching Software with Spectrophotometer for Color Recipe
Printing Ink Color Matching Software Technical Data
Spectrophotometer |
Sphere Size:40mm,Alvan-diffuse reflection surface coating Illumination Light Sources:CLEDS Geometry:d/8 Wavelength:400-700nm Wavelength Interval:10nm Measurement Range:0-200% Resolution:0.01% Light Source:A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9 ,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF Measurement Interval:2s Size:181x73x112mm Weight:about 550g (without battery) |
Color Matching Software |
Color Quality Control Color Correction Color Formula Calculation Instrument Calibration |
Color QC Software |
Color different analysis Data storage |
Accessories | electronic color swatch, color QC software, USB cable, operate manual, driver CD,Battery, calibration tile,carrying bag |
Printing Ink Color Matching Software Introduction
The whole color matching system inclused includes spectrophotometer and color matching software. It is widely used in paint, coating, printing, plastic, textile, dying indsutry, etc to get color recipe in gram unit. Spectrophotometer will transfer the test result into color matching software and then the software will calculate how much raw materials we will use to make the color.
Advantage of Color Matching System Comparing with Chemist Color Matching
CHNSpec's Color Matching Software | Artificial Color Matching |
It can provide various formula according to the instrument test result | Chemist could only provide limited color scheme |
Color Value and formula data reduce labor cost and ensure stable production | Color scheme is not stable and entirely depends on the experience of chemist |
Simple operation and rapid test result | Complicate and requires experienced chemist for long time matching |
Get exlectronic sample value and formula | Color chart and formula can not be recorded well |
Formula is higher accuracy and increases the efficiency of chemist | Chemist need adjust formula for many times.It spends longer time,increases the cost and reduces efficiency |
Old and waste materials can be used for color matching which saves cost | A large number of waste and old materials can not be fully used |

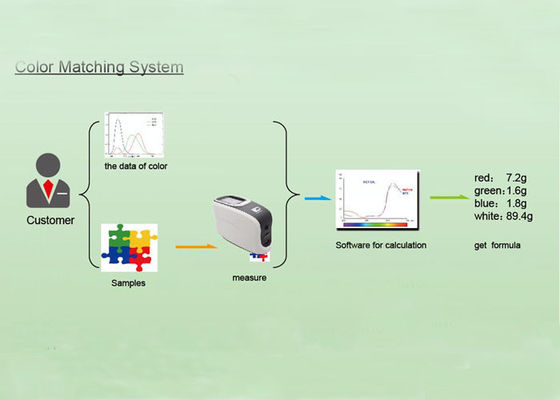

Color Matching System Pictures
