Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: CS-800
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Size: 54x45x31cm Material: inner box: canvas bag outer box: Carton box
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000 per month
Illumination Light Source: |
CLEDs |
Sensor: |
Dual Light Path Sensor Array |
Reflectivity Range: |
0-200% |
Reflectivity Resolution: |
0.01% |
Machine Weight: |
4.5kgs |
Machine Packing Size: |
350*300*200mm(L*W*H) |
Usage: |
Textile Color Reading Machine |
Interface: |
USB |
Data Storage: |
20000 Test Results |
Display: |
5 Inches Color Screen |
Illumination Light Source: |
CLEDs |
Sensor: |
Dual Light Path Sensor Array |
Reflectivity Range: |
0-200% |
Reflectivity Resolution: |
0.01% |
Machine Weight: |
4.5kgs |
Machine Packing Size: |
350*300*200mm(L*W*H) |
Usage: |
Textile Color Reading Machine |
Interface: |
USB |
Data Storage: |
20000 Test Results |
Display: |
5 Inches Color Screen |

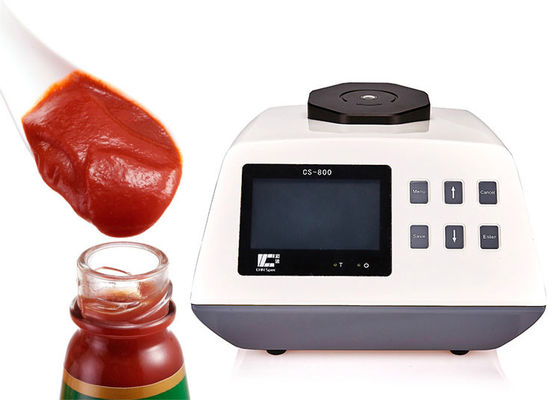

Professional Benchtop Spectrophotometer Tomato Sauce Test With D/8 Geometry
Introduction:
CS-800 is a highly performance color matching spectrophotometer with upward test aperture. The instrument adopts the geometry of D/8 and observation of CIE recommendations, integration of the full band LED composite light source, double beam optical system, ETC every-test calibration technology to make its standard deviation reaches 0.08 and maximum chromaticity values ΔE*ab is 0.03. It could be widely used for coating, printing, textile, meet plastic, food, medicine, automobile field to meet customers’ measurement requirement.
Specifications:
| Type | CS-800 | |
| Illumination | d/8 (conform to CIE No.15, ISO 7724/1, ASTM E1164, DIN 5033 Teil7, JIS Z8722 Condition c standards) | |
| Size of integrating sphere | Φ40mm,Alvan diffused reflection surface coating | |
| Wavelength range | 400-700nm | |
| Wavelength interval | 10nm | |
| Half spectral width | 5nm | |
| Observation angle | 2°/10° | |
| Measurement light source | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF | |
| Data being displayed | SPD distribution/data, sample's color values, color difference values/graph, pass/fail results, color error tendency, color simulation, display measurement area,history data color simulation, manual input standard sample, generate measurement report | |
| Measurement time | About 1 second | |
| Measurement time interval | 0.5 second | |
| Measuring caliber | Φ11mm | |
| Color space | CIE-L*a*b,L*C*h,L*u*v,XYZ,Yxy,reflectivity,Hunterlab,Munsell MI,CMYK | |
| Color difference formulas | ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00,ΔEab(Hunter),555,color classification | |
| Other colorimetric indices | WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger Stensby),YI(ASTM D1925,ASTM E313-00,ASTM E313-73), | |
| Repeatability | light splitting reflectivity: standard deviation within 0.08% | |
| color values:ΔE*ab<=0.015(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals),Maximum: 0.03 | ||
| Battery capacity | rechargeable, 20000 continuous tests, 7.4V/6000mAh | |
| Data storage | 40000 test results | |
| Light source longevity | 5 years, 1.5 million tests | |
| Inter-instrument agreement | ΔE*ab within 0.2 (BCRA color charts II, average of the 12 charts) | |
| Work temperature range | 0~45℃, relative humidity 80% or below(at 35°C), no condensation |
Competitive Advantage:
1). The First Spectrophorometer in China
2). D/8 Geometry, Simultaneous SCI/SCE Measurement
3). Top-port Caliber for Color Measurement
4). Upward Testing Caliber, Can Measure State of Solid, Samples of Different Particles, Powder, Paste etc. Easily
5). Can Measure Both SCI (specular included) and SCE (specular excluded) At The Same Time
6). Large Data Storage: Recoeds 40,000 Tests' Data
Free Color QC Software
Our spectrophotometer comes with the color management software, which is applicable in various industries’ quality control and management of color data. It turns color into numerical data, compares color differences, generates measurement reports. provides measurement data under different color spaces and customizes color management for each customer.
Technical Support
a. One Year Guarantee Time.
b. If testing result is not correct, we will refund to you.
Packing List
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Line |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Driving Software | 1 | Black/White Calibration Tile |
| 1 | Color QC Software | 1 | Verification Certification |
| 1 | Packing List | 1 | Warranty Card |
