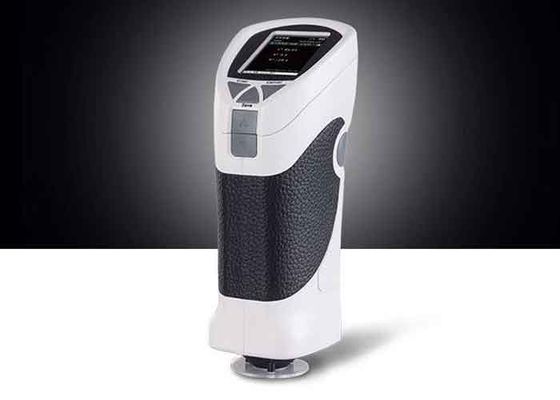

Reflectance Colorimeter Equal to Konica Minolta Colorimeter with D / 8 Geometry SCI Test Mode

Reflectance Colorimeter Equal to Konica Minolta Colorimeter with D / 8 Geometry SCI Test Mode
Reflectance Colorimeter Equal to Konica Minolta Colorimeter with D / 8 Geometry SCI Test Mode
Reflectance Colorimeter Equal to Konica Minolta Colorimeter with D / 8 Geometry SCI Test Mode Reflectance Colorimeter Equal to Konica Minolta Colorimeter with D / 8 Geometry SCI Test Mode

Large Image :  Reflectance Colorimeter Equal to Konica Minolta Colorimeter with D / 8 Geometry SCI Test Mode

Product Details:
Place of Origin: China
Brand Name: CHNspec
Certification: CE
Model Number: CS-288
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200 sets per month

Reflectance Colorimeter Equal to Konica Minolta Colorimeter with D / 8 Geometry SCI Test Mode

Description
Illumination System: D/8,SCI Measuring Caliber: 11mm (optional 15mm,4mm,6mm)
Storage: 1000 Test Results Instrument Size: 77x86x210mm
Measurement Time: 2 Second Measuring Range: 0-200%
Repeatability: Below 0.08 Measuring Light Source: LED
Languages: English And Chinese Device Weight: 550g (without Battery)
Interface: USB 2.0 Memory: 20000 Samples
High Light:

colour measurement device

,

paint color analyzer

Reflectance Colorimeter Equal to Konica Minolta Colorimeter with D / 8 Geometry SCI Test Mode






Reflectance Colorimeter Introduction


Reflectance Colorimeter is also called spectro meter or color meter. It is widely used in different industries such as plastic, cement, printing, paint, weaving and dyeing.It measures the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.It is also suitable for Ganz whiteness, CIE/ISO whiteness,ASTM whiteness,Hunter whiteness and other whiteness measurement.


Reflectance Colorimeter Equal to Konica Minolta Colorimeter with D / 8 Geometry SCI Test Mode 0



Reflectance Colorimeter Specifications



Type CS-288
Illumination

di/8(Diffused Illumination, 8 degree viewing)
(conform to CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7, JIS Z8722

Condition c standard)

Size of integrating sphere Φ40mm, Avian diffused reflection surface coating
Light source CLED
Wavelength 400-700nm
Spectrum Resolution 10nm
Measurement Time 2s
Repeatability

Standard Deviation ΔE*ab 0.08(when a white calibration plate is measured 30 x at

10-second intervals after calibration)

Observe Angles 2° and 10°
Light Source

A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,

NBF,U30,CWF,U35

Display

Chromaticity value(L*a*b,L*C*h), delta E value, pass/fail, color tendency, average,

generate test report, spectrum reflectance figure /data

With camera to see the measurement area, spectrum reflectance figure /data,

manual input target data

Color Difference Formula ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00
Color Space CIE-L*a*b,L*C*h,L*u*v,XYZ,Yxy,Reflectance
Other WI(ASTM E313-10,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger,Ganz,Stensby) YI(ASTM D1925,ASTM E313-00,ASTM E313-73)
metameric index ,staining fastness , Color fastness
Light Source Lifetime 5 years, 1.5 million times
Language Chinese and English
Operating Temperature 5~45℃, relative humidity 80% or below( at 35°C ),no condensation
Power Rechargeable Lithium Battery 8.4V/2000mAh, adaptor DC12V




Reflectance Colorimeter Advantage

1). Automatic gloss compensation technology
2). Every test calibration technology
3). Patented Technology for stability
4). For YI, WI and Tint measurement
5). Obtain National Metrology Certification
6). SCS optional engine
7). Highest precision colorimeter
8). Adopt spectral measurement theory for high accuracy
9). Adopt CLEDs light source---spectrally balanced LED light source
10). Optional accessories for different functions


Reflectance Colorimeter Equal to Konica Minolta Colorimeter with D / 8 Geometry SCI Test Mode 1



Reflectance Colorimeter Free Color QC Software

Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.It will help the color analysis worker finish the job much easier.





Reflectance Colorimeter Packing List



Reflectance Colorimeter Equal to Konica Minolta Colorimeter with D / 8 Geometry SCI Test Mode 2



Qty. Name Qty. Name
1 Main Instrument 1 Power Line
1 Operating Manual 1 USB Cable
1 Driving Software 1 Black/White Calibration Tiles
1 Color QC Software 1 Packing List
