Glass Haze Measurement Instrument Wavelength Interval 10 Nm Memory 20000 Value

Place of Origin China
Brand Name CHN spec
Certification CE
Model Number CS-700
Minimum Order Quantity 1
Price negotiable
Packaging Details Inner Box: Foam Package Outer Box: Carton box Size:70x34x56cm
Delivery Time 5-7 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000 per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Instrument Color White Product Name Haze And Transmission Test Machine
Application Glass Haze Measurement Light Source C,D65 And A
Standard ASTM And ISO Power 110-240V
Warranty 1 Year Instrument Weight 7kgs
Interface USB
High Light

haze meter plastics

,

transmission haze measurement

Leave a Message
Product Description
0-100% Haze Measurement Range Glass Lamination Test Haze and Transmission Test Machine



Haze and Transmission Test Machine Introduction

Haze and Transmission Test Machine is also called haze meter which measures the amount of light that is diffused or scattered when passing through the transparent sample.Transparency is important because a material needs to be more or less see-through depending on its practical usage for example grocery bag needs the light to be more diffused so that less can be seen,while food packing film needs the light to be less diffused so that the contents can be seen clearly.Haze meters are necessary to determine which material is needed for which practical purpose.

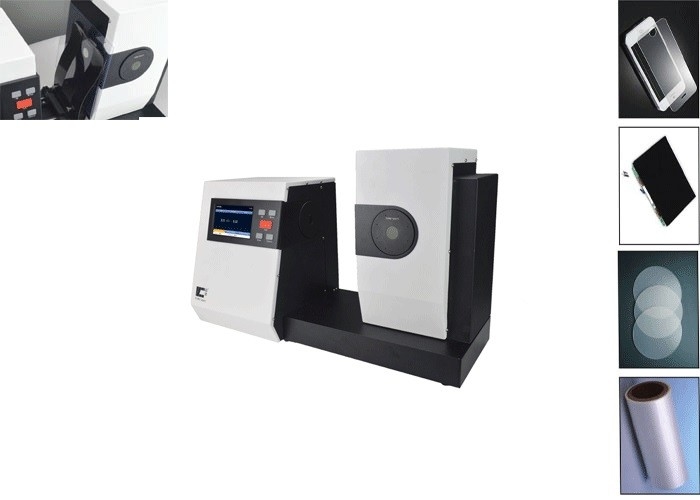

CS-700 haze meter is designed for plastic, films, glass, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement.


Haze and Transmission Test Machine Working Principle

When a beam of parallel light hits the sample and enters the integrating sphere, it is scattered on the sphere inner white coating, the total transmittance is measured when the optical trap outlet on the sphere is closed. When the optical trap is opened, haze will be measured.

Glass Haze Measurement Instrument Wavelength Interval 10 Nm Memory 20000 Value 0





Haze and Transmission Test Machine Standards



ASTM D1003/D1044, ISO13468, ISO14782, JIS K7105, JIS K7361, JIS K7136



Haze and Transmission Test Machine Advantage

1). It can realize transmittance compensation measurement which can provide higher accuracy test result.
2). Open measurement area, no limit on sample size. Vertical measurement is also available.
3). Different fixtures to meet the measurement requirement for sheet material and liquid in different shapes.
4). Instrument is with free PC software for haze and transmittance measurement.


Haze and Transmission Test Machine Technical Data

Type Haze Meter CS-700
Light Source CIE-A,CIE-C,CIE-D65
Standards ASTM D1003/D1044,ISO13468/ISO14782
Parameters HAZE,Transmittance(T)
Spectral Response CIE Luminosity function y
Wavelength 400-700nm
Wavelength Interval 10nm
Geometry 0/d
Measurement Area/Sample Port 16.5mm/21mm
Measurement Range 0-100%
Haze Resolution 0.01
Haze Repeatability ≤0.1
Sample Size Thickness ≤150mm
Display 5 inch TFT LCD screen
Memory 20000 value
Interface USB
Power 110-240V
Working Temperature 10-40 ℃
Size (LxWxH) 598mm X 247mm X 366mm




Haze and Transmission Test Machine Packing List



Glass Haze Measurement Instrument Wavelength Interval 10 Nm Memory 20000 Value 1



Qty. Name Qty. Name
1 Main Instrument 1 Power Adaptor
1 Operating Manual 1 USB Cable
1 PC Software 1 Verification Certification
1 Packing List 1 Warranty Card
