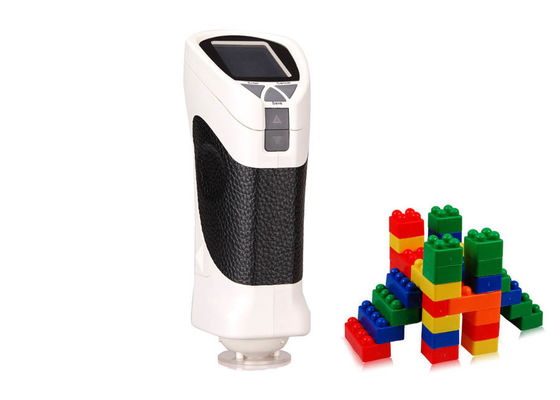

Portable Dental Multi Parameter Colorimeter 2 Second Measurement Time

Product Details:
Place of Origin: China
Brand Name: CHNspec
Certification: CE
Model Number: CS-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200 sets per month
Contact Now

Detail Information

Illumination System: D/8,SCI Measuring Caliber: 11mm (optional 15mm,4mm,6mm)
Storage: 1000 Test Results Instrument Size: 77x86x210mm
Measurement Time: 2 Second Measuring Range: 0-200%
Repeatability: Below 0.08 Measuring Light Source: LED
Languages: English And Chinese Device Weight: 550g (without Battery)

Product Description

Textile QC Color Difference Testers Portable Dental Colorimeter For Paint





Introduction:



CS-200 Color Checker Introduction is specially designed for chemical powder yellowness or whiteness measurement.It is with sealed aperture to make sure material will not enter into instrument.Its standard accessories contains one holder for powder and cream type material. It could test the color difference for meat,coffee, tomato sauce, colorant,pigment and other materials. It measures the sample color space L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.





Specifications:



Type CS-200
Illumination system 8/d(8°/diffused illumination)
SCI
Testing Aperture Diameter 8mm (option 4mm)
Measuring conditions CIE 10° standard observer; CIE D65 light source

Display



Chromaticity Value:L*a*b*,L*c*h,ΔE*ab,relative RGB value

YI (yellowness index) and WI (whiteness index)



Measuring range L*:1-100
Repeatability Standard deviation within delta E*ab*,below 0.08(testing condition: measure the white calibration board for average)
Storage 100 sets of standard samples; up to 100 under each standard sample
Measuring time About 0.5 seconds
Measuring light source LED
languages Chinese, English
Power Four AA1.5V Alkaline battery or nickel-metal hydride batterys; Exclusive DC5V adapter
port USB2.0 printer
weight 550g
Size 77×86×210mm





Competitive Advantage:



1). Best choice for color evaluation and data management
2). High Quality & Reasonable Price
3).
For YI and WI Measurement
4). Higher Accurate and Stable Performance
5). PC Software for Data Management
6). Mass Storage Memory
7). Average for Multi Points Measurement
8).
Chinese / English Language Switching
9). National Metrology Accreditation
10). Low power consumption,USB or Bluetooth(optional) for data transfer





Free Colorimeter QC Software:

Our device is with mature PC management software. It could connect the colorimeter with the PC. With the software, we could save and manage the color data, derive the data, generate testing report, test report printing. It will help the color analysis worker finish the job much easier.

Portable Dental Multi Parameter Colorimeter 2 Second Measurement Time





Packing List:



Packing Material:Canvas bag with carton box

Packing Size:230x230x240mm

Packing Weight:2.4kgs

Delivery time:3-20 days after payment received.



Qty. Name Qty. Name
1 Main Instrument 1 Power Line
1 Operating Manual 1 USB Cable
1 Driving Software 1 Black/White Calibration Tiles
1 Color QC Software 1 Packing List
