Ultra High Speed Spectral Scanning Imaging Device With High Signal To Noise Ratio

  • Ultra High Speed Spectral Scanning Imaging Device With High Signal To Noise Ratio
  • Ultra High Speed Spectral Scanning Imaging Device With High Signal To Noise Ratio
  • Ultra High Speed Spectral Scanning Imaging Device With High Signal To Noise Ratio
  • Ultra High Speed Spectral Scanning Imaging Device With High Signal To Noise Ratio
  • Ultra High Speed Spectral Scanning Imaging Device With High Signal To Noise Ratio
Place of Origin China
Brand Name CHNSpec
Certification CE
Model Number FS-63
Minimum Order Quantity 1
Price gotiable
Packaging Details carton box
Delivery Time 5-7days
Payment Terms T/T
Supply Ability 1000 per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Spectroscopic Method Transmission Grating Spectroscopy Spectral Range 900-1700nm
Number Of Spectral Channels 254 Spectral Resolution 8nm
Slit Width 25um Transmission Efficiency ＞60%
Stray Light ＜0.5% Number Of Spatial Pixels 320
Pixel Size 30um Imaging Speed 200fps
High Light

8nm Spectral Hyperspectral Imaging Camera

,

Ultra High Speed Hyperspectral Imaging Camera

,

near infrared hyperspectral measurement system
Leave a Message
Product Description
Ultra-High Speed Spectral Scanning Imaging Device With High Signal-To-Noise Ratio

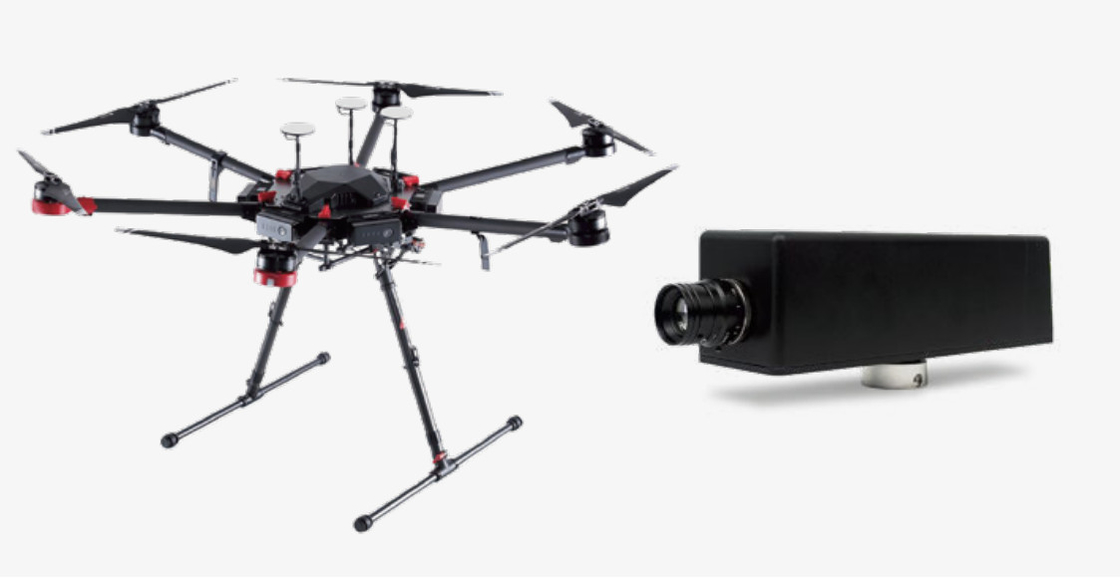

FS-63 UAV near-infrared
hyperspectral measurement system

Ultra High Speed Spectral Scanning Imaging Device With High Signal To Noise Ratio 0
♦Dji M300RTK (DJI M600Pro optional) is used as the flight bearing platform.
♦Ultra-high speed spectral scanning imaging device with high signal-to-noise ratio provides high stability of
  spectral image acquisition.
♦A self-developed high efficiency and low power image processing algorithm is adopted to greatly prolong the
  flight time of the whole machine and reduce the power consumption of the system.
♦Through real-time measurement of spectral image information of plants, water, soil and other ground objects, it
  can be applied to precision agriculture, crop growth and yield assessment, forest disease and insect pest
  monitoring and fire monitoring, coastline and marine environmental monitoring, lake and watershed environ
  mental monitoring and other applications.
♦The system design is compact and the main spectral resolution of the imaging spectrometer is up to 2.5nm.
  Components: high stability head, hyperspectral imager, embedded data acquisition and processing storage
  unit, wireless image transmission system, GPS-RTK navigation system, ground receiving workstation, ground
  control system, reflectance calibration board.
Applications
Ultra High Speed Spectral Scanning Imaging Device With High Signal To Noise Ratio 1
Technical parameters
Flight unit parameters(M600 Pro)
Symmetrical motor wheelbase 1133 mm
Weight(Including 6 TB47S batteries) 9.5 kg
Weight(Including 6 TB47S batteries) 10 kg
Recommended maximum takeoff weight 15.5 kg
Overall dimension 1668 mm × 1518 mm × 727 mm
(Propeller, boom and GPS support are all deployed with landing gear)
437 mm × 402 mm × 553 mm
(The boom and GPS bracket are folded without landing gear)
Hover accuracy(P-GPS) Vertical: ± 0.5 m, horizontal: ± 1.5 m
Maximum rotation angular speed Pitch axis: 300 °/s, heading axis: 150 °/s
Maximum pitch angle 25°
Maximum rising speed 5 m/s
Maximum descent speed 3 m/s
Maximum allowable wind speed 8 m/s
Maximum horizontal flight speed 65 km/h(Windless environment)
Maximum takeoff altitude 2170 slurry:2500 m,2195 slurry:4000 m
Hover time (6 TB47S batteries) No load:32 min,Load 6 kg:16 min
Hover time (6 TB48S batteries) No load:38 min,Load 5.5 kg:18 min
Operating ambient temperature -10 ~ 40℃

Hyperspectral camera parameters

Ultra High Speed Spectral Scanning Imaging Device With High Signal To Noise Ratio 2

Spectroscopic method Transmission grating spectroscopy
Spectral range 900-1700nm
Number of spectral channels 254
Spectral resolution 8nm
Slit width 25um
Transmission efficiency ＞60%
Stray light ＜0.5%
Number of spatial pixels 320
Pixel size 30um
Imaging speed 200fps
Detector InGaAs
SNR(Peak) 600/1
Output Gigabit network interface
Interface C-Mount
Parts USB3.0 or Gigabit network
ROI Single area
Software
interface		 *The instrument can communicate with PLANTEYE ®, FIGSPEC ®,
SCICHROMA ®
One of the software carries out data communication and provides
it in the annex of the response document.
The authorization document of the brand owner and the trademark
registration certificate of the brand owner.
*With ROI function, it can achieve ROI in multiple regions
Technical
certification		 ※ Relevant technologies and products have won relevant awards
and certificates of national instrument industry association
※ Relevant technologies and products have won relevant awards
and certificates of national industry-university-research association
※ Relevant technologies and products have won the third prize
(including) of the Provincial Science and Technology Progress Award
※ Relevant technologies have obtained domestic invention patents
and American invention patents to ensure the international scope
It has independent intellectual property rights.
