Open Measurement Area Vertical Haze Measurement Instrument Transmittance Haze Meter

Product Details:
Place of Origin: China
Brand Name: CHNSpec
Certification: CE
Model Number: TH-100
Payment & Shipping Terms:
Minimum Order Quantity: 01 set
Packaging Details: Packing Mateiral: Carton Box; Packing Size:66x46x33cm
Delivery Time: 7 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now

Detail Information

Color: White And Black Application: Haze And Transmittance Measurement
Geometry: 0/d Aperture Size: 21mm
Interface: USB Haze Measurement Range: 0-100%
Transmittance Range: 0-100% Repeatability: 0.1 Unit
Memory Storage: 20000 Value Power: 110V-240V
Haze Test Range: 0-100%

Product Description



Open Measurement Area Vertical Measurement Glass Haze Meter Transmittance Haze Meter with Free PC Software







Glass Haze Meter Transmittance Haze Meter Technical Data



Model Haze Meter TH-100
Light Source CIE-A,CIE-C,CIE-D65
Standards ASTM D1003/D1044,ISO13468/ISO14782, JIS K 7361/ JIS K 7136, GB/T 2410-08
Parameters HAZE, Transmittance(T)
Spectral Response CIE Luminosity function Y/V (λ)
Geometry 0/d
Measurement Area/ Aperture Size 16.5mm/21mm
Measurement Range 0-100%
Haze Resolution 0.01
Haze Repeatability ≤0.1
Sample Size Thickness ≤145mm
Memory 20000 value
Interface USB
Power DC24V
Working Temperature 10-40 ℃ (+50 – 104 °F)
Size (LxWxH) 310mm X 215mm X 540mm





Glass Haze Meter Transmittance Haze Meter Brief Introduction



Haze meter is designed for haze and transmittance measurment for plastic sheets, films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials. Our haze meter does not need warm-up during test which saves customer's time. Instrument conforms to ISO, ASTM, JIS, DIN and other international standards to meet all customers’ measurement requirement.

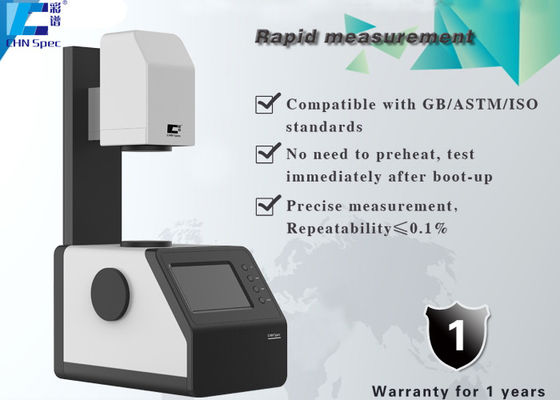

Open Measurement Area Vertical Haze Measurement Instrument Transmittance Haze Meter





Hazemeter Advantages



1). It conforms to international standards ASTM D 1003,ISO 13468,ISO 14782, JIS K 7361 and JIS K 7136.


2). Three kinds of light sources A,C and D65 for haze and total transmittance measurement.



3). It can realize transmittance compensation measurement which can provide higher accuracy test result.




4). Open measurement area, no limit on sample size.






5). Instrument is with 5.0 inches TFT display screen with good human-computer interface.






6). It can realize both horizontal and vertical measurement to measure different kinds of materials.






7). It adopts LED light source whose lifetime can reach 10 years.



haze meter.jpg







Hazemeter Application


haze meter instrument 2.jpg



haze meter instrument 1.jpg



Hazemeter Packing List


haze meter packing list.jpg



Qty. Name Qty. Name
1 Main Instrument 1 Power Adaptor
1 Operating Manual 1 USB Cable
1 Haze QC Software 1 0% Calibration Cover
1 Compensation Port Cover 1 Warranty Card
