ASTM Haze Measurement Instrument For Certificate Traceable To International Standard

ASTM Haze Measurement Instrument For Certificate Traceable To International Standard
ASTM Haze Measurement Instrument For Certificate Traceable To International Standard
ASTM Haze Measurement Instrument For Certificate Traceable To International Standard ASTM Haze Measurement Instrument For Certificate Traceable To International Standard ASTM Haze Measurement Instrument For Certificate Traceable To International Standard ASTM Haze Measurement Instrument For Certificate Traceable To International Standard

Large Image :  ASTM Haze Measurement Instrument For Certificate Traceable To International Standard

Product Details:
Place of Origin: China
Brand Name: CHNSpec
Certification: CE
Model Number: TH-100
Payment & Shipping Terms:
Minimum Order Quantity: 01 set
Packaging Details: Packing Mateiral: Carton Box; Packing Size:66x46x33cm
Delivery Time: 7 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month

ASTM Haze Measurement Instrument For Certificate Traceable To International Standard

Description
Color: White And Black Application: Plastic, Film And Glass
Geometry: 0/d Haze Measurement Range: 0-100%
Repeatability: 0.1 Unit Memory Storage: 20000 Value
Power: 110V-240V Light Source: A,C And D65
High Light:

haze meter plastics

,

transmission haze measurement

ASTM Haze Measurement Instrument For Certificate Traceable To International Standard





Transmittacne Haze Meter Brief Introduction



Our haze meter does not need warm-up during test which saves customer's time. Instrument conforms to ISO, ASTM, JIS, DIN and other international standards to meet all customers’ measurement requirement. It is mainly designed for plastic sheets, films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement.






Transmittacne Haze Meter Working Principle

When a beam of parallel light hits the sample and enters the integrating sphere, it is scattered on the sphere inner white coating, the total transmittance is measured when the optical trap outlet on the sphere is closed. When the optical trap is opened, haze will be measured.

ASTM Haze Measurement Instrument For Certificate Traceable To International Standard 1


Haze Meter Instrument Advantages



1). It conforms to international standards ASTM D 1003,ISO 13468,ISO 14782, JIS K 7361 and JIS K 7136.




2). Three kinds of light sources A,C and D65 for haze and total transmittance measurement.






3). It can realize transmittance compensation measurement which can provide higher accuracy test result.

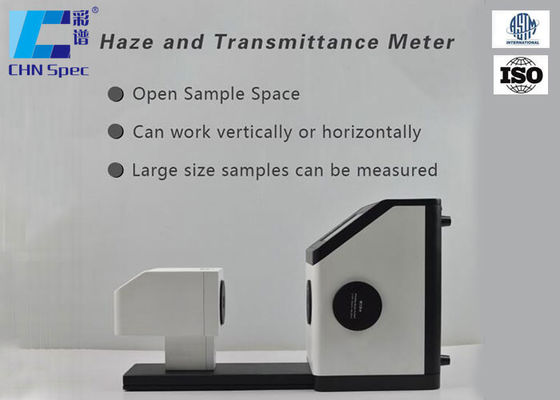

4). Open measurement area, no limit on sample size.






5). Instrument is with 5.0 inches TFT display screen with good human-computer interface.






6). It can realize both horizontal and vertical measurement to measure different kinds of materials.





7). It adopts LED light source whose lifetime can reach 10 years.


haze meter.jpg



8). No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 3 seconds.



9). Small size and light weight which makes it much easier to carry.





Haze Meter Instrument Application


haze meter instrument 2.jpg



haze meter instrument 1.jpg



Haze Meter Instrument Packing List


haze meter packing list.jpg



Qty. Name Qty. Name
1 Main Instrument 1 Power Adaptor
1 Operating Manual 1 USB Cable
1 Haze QC Software 1 0% Calibration Cover
1 Compensation Port Cover 1 Warranty Card





Haze Meter  Instrument Technical Data



Type Haze Meter TH-100
Light Source CIE-A,CIE-C,CIE-D65
Standards ASTM D1003/D1044,ISO13468/ISO14782, JIS K 7361/ JIS K 7136, GB/T 2410-08
Parameters HAZE, Transmittance(T)
Spectral Response CIE Luminosity function Y/V (λ)
Geometry 0/d
Aperture Size 21mm
Measurement Range 0-100%
Haze Resolution 0.01
Haze Repeatability ≤0.1
Sample Size Thickness ≤145mm
Memory 20000 value
Interface USB
Power DC24V
Working Temperature 10-40 ℃ (+50 – 104 °F)
Storage Temperature 0-50℃ (+32 – 122 °F)
Size (LxWxH) 310mm X 215mm X 540mm
Standard Accessory Free PC software (Haze QC), one pcs of haze standard plate
Optional Fixtures
