Transparent Material Haze Meter Instrument CS-700 110 - 240V Fit Glass And Films

Product Details:
Place of Origin: China
Brand Name: CHNSpec
Certification: CE
Model Number: CS-700
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size:70x34x56cm
Delivery Time: 20-25 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now

Detail Information

Instrument Color: White Light Source: C,D65 And A
Standard: ASTM And ISO Power: 110-240V
Product Name: Haze Meter Warranty: 1 Year
Application: Glass/Plastic Haze Measurement Function: Haze Measurement
Instrument Weight: 7kgs

Product Description

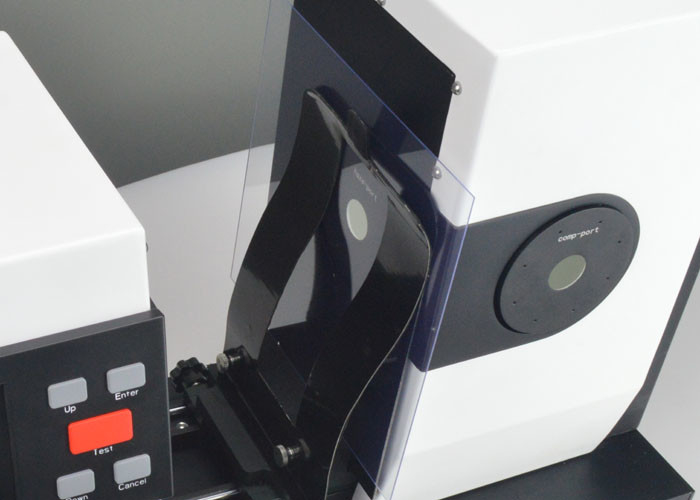

CS-700 110-240V Transparent Material Haze Meter Instrument for Glass and Films


Haze Meter Instrument Advantages

1). Conform to both ASTM and ISO standard.
2). Three kinds of light sources A,C and D65 for haze measurement.
2). It can realize transmittance compensation measurement which can provide higher accuracy test result.
3). Open measurement area, no limit on sample size. Vertical measurement is also available.
4). Different fixtures to meet the measurement requirement for sheet material and liquid in different shapes.
5). Haze meter instrument made by CHNSpec tech does not need warm-up which saves customer's time. As soon as the instrument start, it can measure.

Haze Measurement In Plastic

Haze Meter Application

Haze is measured with a wide angle scattering test in which light is diffused in all directions which results in a loss of contrast. That percentage of light that when passing through that deviates from the incident beam by greater than 2.5 degrees on average is defined as haze.


Digital haze meter CS-700 can measure haze and transmittance for transparent plastic, glass, screen, etc with high accuracy and can conform to both ASTM and ISO standard.


Haze Meter Technical Data


Type Haze Meter CS-700
Light Source CIE-A,CIE-C,CIE-D65
Standards ASTM D1003/D1044,ISO13468/ISO14782
Parameters HAZE,Transmittance(T)
Spectral Response CIE Luminosity function y
Wavelength 400-700nm
Wavelength Interval 10nm
Geometry 0/d
Measurement Area/Sample Port 16.5mm/21mm
Measurement Range 0-100%
Haze Resolution 0.01
Haze Repeatability ≤0.1
Sample Size Thickness ≤150mm
Display 5 inch TFT LCD screen
Memory 20000 value
Interface USB
Power 220V
Working Temperature 10-40 ℃
Size (LxWxH) 598mm X 247mm X 366mm
Standard Accessory PC software (Color QC)



Haze Meter Company Information

Our CHNSpec Technology Co., Ltd are specialized on manufacturing haze meter, spectrophotometers, colorimeters and gloss meters. Our products have gotten 10 Invention Patents including 1 American Invention Patent, 8 Utility Model Patents, 4 Appearance Patents and 3 Software Copyrights till now. If any need or questions about our products, please do not hesitate to contact me. You are warmly welcome to visit and purchase from us.
