Professional Design Haze Measurement Instrument With 5 Inch TFT LCD Screen

Product Details:
Place of Origin: China
Brand Name: CHNspec
Certification: CE
Model Number: CS-720
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Professional Plastic And Films Testing Machine Transmission Haze Meter
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now

Detail Information

Color: White Product Name: Haze Meter
Application: Glass/Plastic Haze Measurement Certificate: CE
Standard: ASTM And ISO Power Supply: 110-240V
Warranty: 1 Year Function: Haze Measurement
Weight: 7kgs Memory: 20000 Value
Interface: USB Power: 110-240V

Product Description

Professional Haze Measurement Instrument





Introduction



Haze is measured with a wide angle scattering test in which light is diffused in all directions which results in a loss of contrast. That percentage of light that when passing through that deviates from the incident beam by greater than 2.5 degrees on average is defined as haze.



Haze measurement instrument made by CHNSpec is designed for plastic, films, glass, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement.





Specifications:



Type Color and Haze Meter CS-720
Light Source

CIE-A,CIE-C,CIE-D65

Chromaticity Value: A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CMF,

U30,DLF,NBF,TL83,TL84

Standards

ASTM D1003/D1044,ISO13468/ISO14782

CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7,
JIS Z8722 Condition c standard
Parameters

HAZE,Transmittance(T)

CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7,
JIS Z8722 Condition c standard

Whiteness Index (ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger Stensby)
Yellowness Index (ASTM D1925,ASTM E313-00,ASTM E313-73)
Tint(ASTM E313-00), Metamerism Index, Milm
APHA,Pt-Co,Gardner,Color Difference(ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,

ΔE*00)

Spectral Response CIE Luminosity function y
Wavelength 400-700nm
Wavelength Interval 10nm
Geometry 0/d
Measurement Area/Sample Port 16.5mm/21mm
Measurement Range 0-100%
Haze Resolution 0.01
Haze Repeatability ≤0.1
Sample Size Thickness ≤150mm
Display 5 inch TFT LCD screen
Working Temperature 10-40 ℃
Size (LxWxH) 598mm X 247mm X 366mm
Standard Accessory PC software (Color QC)
Optional Measurement Fixture, Haze standard film





Competitive Advantage:



1. Conform to ASTM and ISO standard. 3 kinds of light sources A,C and D65 for haze measurement.

2. It can realize transmittance compensation measurement which can provide higher accuracy test result.

3. Open measurement area, no limit on sample size. Vertical measurement is also available.

4. Different fixtures to meet the measurement requirement for sheet material and liquid in different shapes.

5. Instrument comes with free haze and transmittance measurement software.

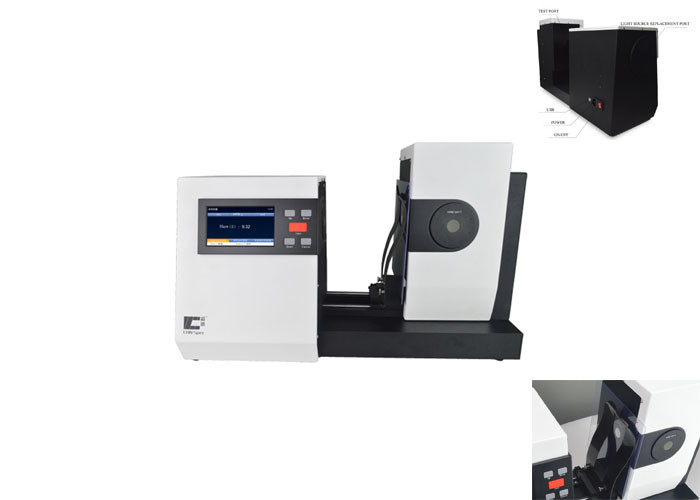

Professional Design Haze Measurement Instrument With 5 Inch TFT LCD Screen





Application Examples:

Professional Design Haze Measurement Instrument With 5 Inch TFT LCD Screen
