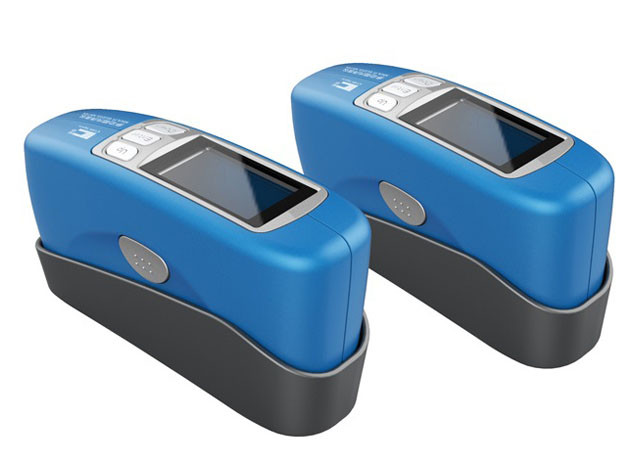

20 85 60 Degree Gloss Meter , Gloss Measurement Instruments Working Humidity <85%

20 85 60 Degree Gloss Meter , Gloss Measurement Instruments Working Humidity &lt;85%
20 85 60 Degree Gloss Meter , Gloss Measurement Instruments Working Humidity <85%
20 85 60 Degree Gloss Meter , Gloss Measurement Instruments Working Humidity &lt;85% 20 85 60 Degree Gloss Meter , Gloss Measurement Instruments Working Humidity &lt;85% 20 85 60 Degree Gloss Meter , Gloss Measurement Instruments Working Humidity &lt;85% 20 85 60 Degree Gloss Meter , Gloss Measurement Instruments Working Humidity &lt;85% 20 85 60 Degree Gloss Meter , Gloss Measurement Instruments Working Humidity &lt;85%

Large Image :  20 85 60 Degree Gloss Meter , Gloss Measurement Instruments Working Humidity <85%

Product Details:
Place of Origin: China
Brand Name: CHNspec
Certification: CE
Model Number: CS-380
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size:25x23x12cm
Delivery Time: 3-5 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month

20 85 60 Degree Gloss Meter , Gloss Measurement Instruments Working Humidity <85%

Description
Test Angle: 20°,60°,85° Test Range: 60°:0-1000GU
Resolution: 0.1GU Accuracy: Conform To JJG 696 Standard For First Class Gloss Meter
Test Time: Less Than 0.5s Data Storage: 100 Standard Samples; 10000 Test Samples
Size: 165*51*77mm Single Machine Weight: 400g
Language: Chinese And English Battery Capacity: 3000mAh Lithium Battery
High Light:

60 degree gloss meter

,

gloss measurement instruments

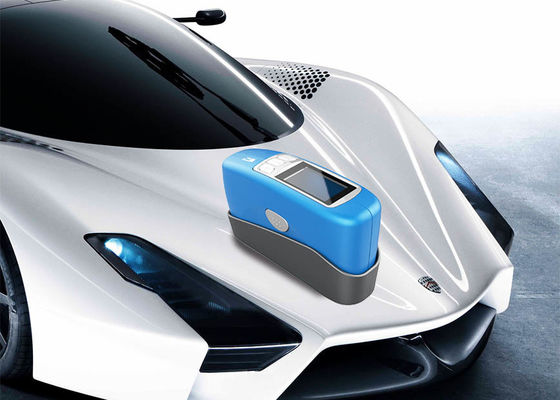

High Quality 20 60 85 Angles Plastic Glossiness Meter For Vehicle Accessories





Introduction:



Gloss meters are mainly used in the surface gloss measurement for paint, plastic, metal, ceramics,granite tiles, building materials and so on. Our gloss meter conform to the DIN 67530, ISO 2813, ASTM D 523, JIS Z8741, BS 3900 Part D5, JJG696 standards and so on. And The single angle glossmeters could be widely used for measuring the glossiness of building material, metal products, ceramic products and automobile accessories, etc.





Specifications:



Model CS-380
Test Angle 20°,60°,85°
Test light spot(mm)

20°:10*10

60°:9*15

85°:5*38

Test range

20°:0-2000GU

60°:0-1000GU

85°:0-160GU

Resolution 0.1GU
Test modes Simple mode, standard mode and sample testing mode
Repeatability

0-100GU:0.2GU

100-2000GU:0.2%GU

Accuracy Conform to JJG 696 standard for first class gloss meter
Test time Less than 1s
Data storage 100 standard samples; 10000 test samples
Size(mm) 165*51*77 (L*W*H)
Weight About 400g
Language Chinese and English
Battery capacity 3000mAh lithium battery
Port USB, Bluetooth (optional)
Upper-PC Software Include
Working Temperature 0-40℃
Working Humidity <85%, no condensation
Accessories 5V/2A charger, USB cable, operating manual, software CD, calibration boards, metrology accreditation certification





Competitive Advantage:



1). Super Stability

Every gloss meter made by us has done the following test:

43200 stability tests;

412 calibration tests;

110 hours of accelerated aging test.



2). High Precision

Every instrument has vertificate certificate from National Modern Metrology and Instruments Testing Laboratory and the Education Engineering Ministry of Education in China.



3). Comfortable Grab Feeling

The shell is made by Dow Corning TiSLV material, a desirable elastic material, a desirable elastic material. It is resistant to UV and banteria and does not cause allergy. All designs are better user experience.



4). Large Battery Capacity

We fully utilized every space of the device and specially custom made advanced high density lithium battery in 3000mAH , which ensures continuous testing for 54300 times.



5). Free Color QC Software
    Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.
20 85 60 Degree Gloss Meter , Gloss Measurement Instruments Working Humidity <85% 0





Packing List:



Packing Material:Foam with carton box

Packing Size:230x220x120mm

Packing Weight:0.56kgs

Delivery Time:1-5 working days according to the type and quality ordered.

Qty. Name Qty. Name
1 Main Instrument 1 Charger Head
1 Operating Manual 1 USB Cable
1 PC Software 1 Verification Certification
1 Packing List 1 Operating Manual
