Color Reflectance Paint Color Matching Spectrophotometer with 15.2cm Integrating Sphere

  • Color Reflectance Paint Color Matching Spectrophotometer with 15.2cm Integrating Sphere
  • Color Reflectance Paint Color Matching Spectrophotometer with 15.2cm Integrating Sphere
  • Color Reflectance Paint Color Matching Spectrophotometer with 15.2cm Integrating Sphere
  • Color Reflectance Paint Color Matching Spectrophotometer with 15.2cm Integrating Sphere
  • Color Reflectance Paint Color Matching Spectrophotometer with 15.2cm Integrating Sphere
Place of Origin China
Brand Name CHN spec
Certification CE
Model Number CS-820
Minimum Order Quantity 1
Price negotiable
Packaging Details Size: 105x53x43cm Material: inner box: canvas bag outer box: Carton box
Delivery Time 5-7 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000 per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Illumination Light Source CLEDs Sensor Dual Light Path Sensor Array
Certificate CE Machine Weight 7kgs
Function Color Testing Dimension 583x330x304mm
Color White Integrating Sphere Size 15.2cm
Testing Caliber 0.12-1 Inch Interface USB
High Light

data colour spectrophotometer

,

led light spectrometer

,

Color Reflectance Paint Spectrophotometer
Leave a Message
Product Description

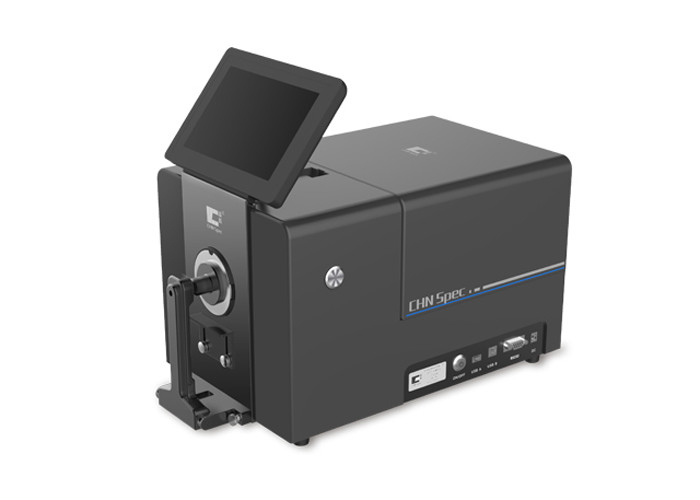

Color Reflectance Paint Color Matching Spectrophotometer with 15.2cm Integrating Sphere





Color Matching Spectrophotometer Application



Our color matching spectrophotometer adopts high technology from overseas. It tests based on the geometry of D/8 that is highly recommend by CIE. Our device is widely used for color testing for most industries such as painting,textile, plastic,cement, food, building material and other products’ color quality control. It could connect with color matching software.




Color Matching Spectrophotometer Specifications



Type CS-820
Measurement Condition

Reflection: d/8 Geometry
SCI/SCE Measurement

(ISO7724/1,DIN5033 Teil7,JIS Z8722 condition C,CIE No.15,ASTM E1164)
Transmittance: d/0 Geometry
Size of integrating sphere Φ15.2cm, Alvan diffused reflection surface coating
Illumination Light source CLEDs
Wavelength range 400-700nm
Wavelength interval 10nm
Reflectivity range 0-200%
Reflectivity resolution 0.01%
Observation angle 2°/10°
Measurement light source

A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12
CWF,U30,DLF,NBF,TL83,TL84
Data being displayed SPD distribution/data, sample's color values, color difference values/graph, pass/fail results, color error tendency, history data color simulation, manual input standard sample, generate measurement report
Measurement time interval 2 seconds
Reflection Aperture Large Aperture (LAV):2.54cm (=1inch)
Medium Aperture (MAV):1.5cm(=0.6inch)
Small Aperture (SAV):0.75cmx1.0cm(0.3inch x 0.4inch)
Very Small Aperture (VSAV):0.3cmx0.8cm(0.12inch x 0.31inch)
Color space CIE-L*a*b,L*C*h,CIE-L*u*v,XYZ,Yxy,Transmittance, Hunterlab, Munsell MI,CMYK, RGB,HSB
Color difference formulas

ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00
ΔEab(Hunter),555color classification
Other colorimetric indices WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby),YI(ASTM D1925,ASTM E313-00,ASTM E313-73),Tint(ASTM E313-00,CIE,Ganz),Metamerism index Milm, Stick color fastness, Color fastness, APHA, Pt-Co, Gardner
Repeatability standard deviation within 0.08%
chromaticity values:ΔE*ab<=0.015(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals,Maximum:0.03)
Light source longevity 5 years, 1.5 million tests
Work temperature 15℃-32℃ (60°F-90°F)



Color Matching Spectrophotometer Competitive Advantage


1). Simultaneous SCI/SCE measurement
2). Transmission and reflectance in one instrument
Transmittance measurement: D/0 Geometry (diffused illumination, 0 degree viewing) to measure liquid APHA, Pt-Co index, Gardner index and other parameter measurement.
Reflectance measurement:D/8 Geometry (diffused illumination, 8 degree viewing) to measure reflectance.
3). Double optical path spectrum analysis technology
Simultaneously obtains the sample reflection signal and the light source intensity signal, guarantees the instrument measuring accuracy and the long-term repeatability.
4). 4 Testing Calibers
CS-820 textile spectrophotometer contains 4 kinds of testing calibers and the largest reaches 25.4mm to meet the color measurement requirement for different kinds of materials.
5). It is with large display screen. So the testing result could be directly and clearly seen without connecting with PC.



Color Matching Spectrophotometer Free Color QC Software


Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.


Color Reflectance Paint Color Matching Spectrophotometer with 15.2cm Integrating Sphere 0



Packing List:

Packing Material:foam with flight box
Packing Size:105x52x54cm
Packing Weight:50kgs
Delivery time:3-15 days after payment received



Color Reflectance Paint Color Matching Spectrophotometer with 15.2cm Integrating Sphere 1



Qty. Name Qty. Name
1 Main Instrument 1 Power Line
1 Operating Manual 1 USB Cable
1 Driving Software 1 Glass Cell
1 Color QC Software 1 Black/White Calibration
1 Verification Certification 4 Apertures
1 Packing List 1 Warranty Card



Paint Color Matching Spectrophotometer RFQ

Q: Are you trading company or manufacturer ?
A: We are factory in Hangzhou city (one hour high speed train from Shanghai). Welcome to come to visit and purchase from us.
Q: How long is your delivery time?
A: Generally it is 1-3 working days if the goods are in stock.If not, we will need 3-15 working days to prepare the products.
Q: What is your terms of payment ?
A: Payment is 100% T/T in advance.
