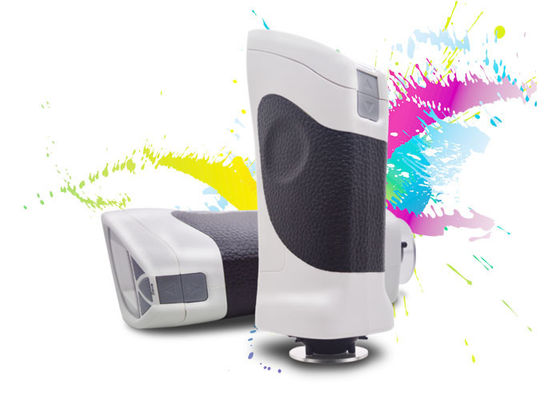

Large Image :  Fast Test Speed Multi Parameter Colorimeter 20000 Test Results Data Storage

Product Details:
Place of Origin: China
Brand Name: CHNspec
Certification: CE
Model Number: CS-280 plus
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200 sets per month

Fast Test Speed Multi Parameter Colorimeter 20000 Test Results Data Storage

Description
Illumination System: D/8,SCI Measuring Caliber: 11mm (optional 15mm,4mm,6mm)
Storage: 20000 Test Results Instrument Size: 77x86x210mm
Measurement Time: 2 Second Measuring Range: 0-200%
Repeatability: Below 0.08 Measuring Light Source: LED
Languages: English And Chinese Device Weight: 550g (without Battery)
Other Function: With Camera Interface: USB2.0
High Light:

handheld colorimeter

,

colour difference meter

Hot Sales Fast Test Speed CIE Lab Digital Colorimeter Suppliers





Digital Colorimeter Introduction



Paint color meter is a instrument that measures how much paint color is absorbed by the sample. It determines paint color based on the red, blue, and green components of light absorbed by the sample.It can measures and get the sample color value L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.





Digital Colorimeter Specifications



Type CS-280+
Illumination di/8(Diffused Illumination, 8 degree viewing)
Size of integrating sphere Φ40mm
Illumination Light source CLED
Sensor array sensor
Wavelength 400-700nm
Spectrum Resolution 10nm
Measurement Time 2s
Measurement Aperture 11mm,optional 4mm,6mm,15mm
Repeatability Standard Deviation ΔE*ab 0.08(when a white calibration plate is measured 30 x at 10-second intervals after calibration)
Observe Angles 2° and 10°
Light Source A,C,D50,D65
Display

Chromaticity value(L*a*b,L*C*h),delta E value,pass/fail,color tendency, average, generate test report,spectrum reflectance figure /data

With Camera to view the measurement area

Color Space CIE-L*a*b,L*C*h,XYZ,Yxy
Color Difference ΔE*ab,ΔE*CH
Other

WI(ASTM E313-10,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger,Ganz,Stensby)

YI(ASTM D1925,ASTM E313-00,ASTM E313-73)

Light Source Lifetime 5 years, 1.5 million times
Operating Temperature 5~45℃, relative humidity 80% or below( at 35°C ),no condensation
Power Rechargeable Lithium Battery 8.4V/2000mAh, adaptor DC12V





Digital Colorimeter Packing List



Packing Material:Canvas bag with carton box

Packing Size:230x230x240mm

Packing Weight:2.4kgs

Delivery time:3-20 days after payment received



Qty. Name Qty. Name
1 Main Instrument 1 Power Line
1 Operating Manual 1 USB Cable
1 Driving Software 1 Black/White Calibration Tiles
1 Color QC Software 1 Packing List





Digital Colorimeter Advantage



1). High precision colorimeter;

2). Free Color QC software;

3). More than 10 patents to guarantees measurement stability;

4). Instrument comes with verification certification;

5). Large storage memory:100 pcs targets and 200 pcs samples;





Digital Colorimeter Software



Instrument is with color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report. It will help the chemist finish the job much easier.
