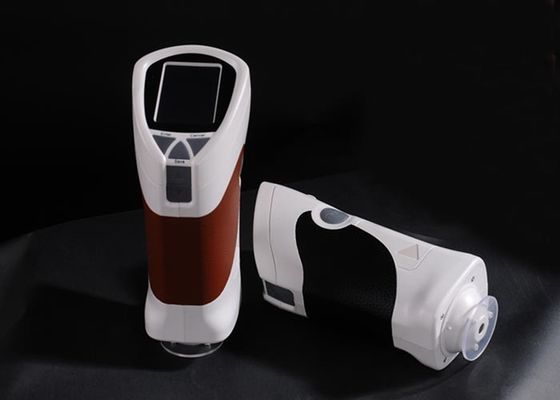

Precise Color Inspection Portable Spectrophotometer Colorimeter Repeatability Below 0.08

Place of Origin China
Brand Name CHN spec
Certification CE
Model Number CS-280
Minimum Order Quantity 1
Price negotiable
Packaging Details Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm
Delivery Time 5-7 days
Payment Terms T/T, Western Union, MoneyGram,Paypal
Supply Ability 1000 per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Illumination System D/8,SCI Measuring Caliber 11mm (optional 15mm,4mm,6mm)
Storage 20000 Test Results Instrument Size 77x86x210mm
Measurement Time 2 Second Measuring Range 0-200%
Repeatability Below 0.08 Measuring Light Source LED
Languages English And Chinese Device Weight 550g (without Battery)
High Light

multi parameter colorimeter

,

colour difference meter

Leave a Message
Product Description

Hot Sales 4mm Aperture Handheld Print Label Color Inspection Machine





Color Inspection Machine Introduction



Plastic colorimeter can be widely used in different plastic industries to measure plastic sheet and plastic film color value L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.It can also be widely used for other industries such as paint, fruit, textile,printing, automobile accessories, etc.





Color Inspection Machine Specifications



Type CS-280
Illumination di/8(Diffused Illumination, 8 degree viewing)
Size of integrating sphere Φ40mm
Illumination Light source CLED
Sensor array sensor
Wavelength 400-700nm
Spectrum Resolution 10nm
Measurement Time 2s
Measurement Aperture 11mm,optional 4mm,6mm,15mm
Repeatability Standard Deviation ΔE*ab 0.08(when a white calibration plate is measured 30 x at 10-second intervals after calibration)
Observe Angles 2° and 10°
Light Source A,C,D50,D65
Display Chromaticity value(L*a*b,L*C*h),delta E value,pass/fail,color tendency, average, generate test report,spectrum reflectance figure /data
Color Difference Formula ΔE*ab,ΔE*CH
Color Space CIE-L*a*b,L*C*h
Light Source Lifetime 5 years, 1.5 million times
Interface USB2.0
Operating Temperature 5~45℃, relative humidity 80% or below( at 35°C ),no condensation
Power Rechargeable Lithium Battery 8.4V/2000mAh, adaptor DC12V
Size 77×86×210mm





Color Inspection Machine Advantage



1). Spectro colorimeter:The highest precision colorimeter;

2). Free Color QC software;

3). Patented technology guarantees measurement stability;

4). It comes with verification certification from 3rd party;

5). Large storage memory:100 pcs targets and 200 pcs samples;





Color Inspection Machine Warranty

color reader cr 10 price

a. One Year Guarantee for whole instrument





Color Inspection Machine Packing List



Packing Material:Canvas bag with carton box

Packing Size:230x230x240mm

Packing Weight:2.4kgs

Delivery time:3-20 days after payment received



Qty. Name Qty. Name
1 Main Instrument 1 Power Line
1 Operating Manual 1 USB Cable
1 Driving Software 1 Black/White Calibration Tiles
1 Color QC Software 1 Packing List



Precise Color Inspection Portable Spectrophotometer Colorimeter Repeatability Below 0.08 1





Color Inspection Machine RFQ



Q: Are you trading company or manufacturer ?
A: We are factory in Hangzhou city (one hour high speed train from Shanghai). Welcome to come to visit and purchase from us.
Q: How long is your delivery time?
A: Generally it is 1-3 working days if the goods are in stock.If not, we will need 3-15 working days to prepare the products.
Q: What is your terms of payment ?
A: Payment is 100% T/T in advance.
