China Portable Color Spectrophotometer manufacturer

Hunter LAB Colour Measuring Instruments , Digital Photo Colorimeter CLED Illumination

Product Details:
Place of Origin: China
Brand Name: CHNspec
Certification: CE
Model Number: CS-280
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200 sets per month
Contact Now

Detail Information

Illumination System: D/8,SCI Measuring Caliber: 11mm (optional 15mm,4mm,6mm)
Storage: 1000 Test Results Instrument Size: 77x86x210mm
Measurement Time: 2 Second Measuring Range: 0-200%
Repeatability: Below 0.08 Measuring Light Source: LED
Languages: English And Chinese Device Weight: 550g (without Battery)

Product Description

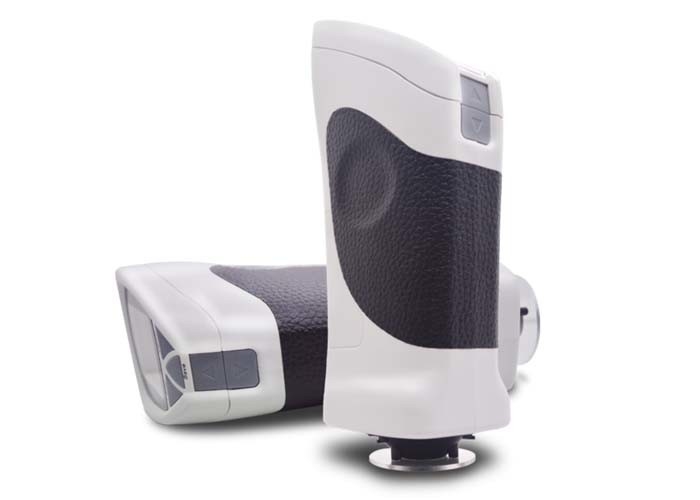

Digital Hunter LAB Color Meter Spectro Colorimeter Measure Manufacturer




Introduction:

Colorimeter is also called color measurement Instrument.It is widely used in different industries such as skin,comestic,textile,plastic,printing, paint,weaving,dyeing,etc.It measures the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.


Hunter LAB Colour Measuring Instruments , Digital Photo Colorimeter CLED Illumination

Hunter LAB Colour Measuring Instruments , Digital Photo Colorimeter CLED Illumination




Specifications:



Type CS-280 CS-280+
Illumination d/8(Diffused Illumination, 8 degree viewing)
Size of integrating sphere Φ40mm
Illumination Light source CLED
Wavelength 400-700nm
Spectrum Resolution 10nm
Measurement Time 2s
Repeatability Standard Deviation ΔE*ab 0.08 (when a white calibration plate is measured 30 x at 10-second intervals after calibration)
Observe Angles 2° and 10°
Light Source A,C,D50 and D65
Display Chromaticity value(L*a*b,L*C*h), delta E value, pass/fail, color tendency, average, generate test report
  With camera to see the measurement area
Color Difference Formula ΔE*ab,ΔE*CH
Color Space CIE-L*a*b,L*C*h CIE-L*a*b,L*C*h,XYZ,Yxy
Other

WI(ASTM E313-10,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger,Ganz,Stensby)
YI(ASTM D1925,ASTM E313-00,ASTM E313-73)

Data Storage 20000 samples
Light Source Lifetime 5 years, 1.5 million times
Other Function without camera view, input color swatches
Language Chinese and English
Interface USB2.0
Operating Temperature 5~45℃, relative humidity 80% or below( at 35°C ),no condensation
Power Rechargeable Lithium Battery 8.4V/2000mAh, adaptor DC12V
Size 77×86×210mm
Weight About 550g



Competitive Advantage:

1). Spectro colorimeter:The highest precision colorimeter
2). Adopts spectral measurement working theory which greatly improve colorimeter accuracy
3).
Automatic gloss compensation technology
4). Mass storage memory:100 pcs targets and 200 pcs samples
5).
Adopt CLEDs light source---spectrally balanced LED light source
6). Patented technology guarantees measurement stability
7). Every test calibration technology
8).
SCS optional engine


Colorimeter Free Color QC Software:

Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.


Hunter LAB Colour Measuring Instruments , Digital Photo Colorimeter CLED Illumination





Packing List:



Packing Material:Canvas bag with carton box

Packing Size:230x230x240mm

Packing Weight:2.4kgs

Delivery time:3-20 days after payment received.



Hunter LAB Colour Measuring Instruments , Digital Photo Colorimeter CLED Illumination



Hunter LAB Colour Measuring Instruments , Digital Photo Colorimeter CLED Illumination
