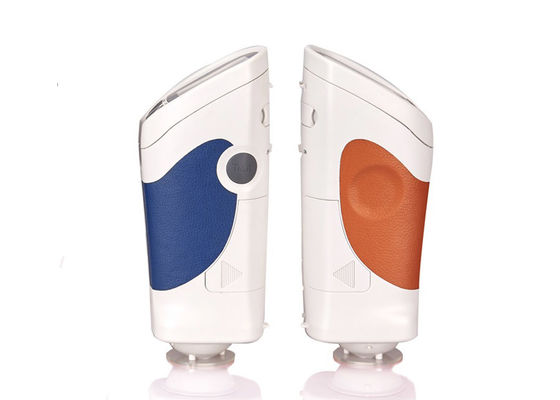

China Portable Color Spectrophotometer manufacturer

USB 2.0 Paint Color Analyzer , Digital Photo Colorimeter English / Chinese Languages

Product Details:
Place of Origin: China
Brand Name: CHNspec
Certification: CE
Model Number: CS-210
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm
Delivery Time: 200 sets per month
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Contact Now

Detail Information

Illumination System: D/8,SCI Measuring Caliber: 8mm
Storage: 10000 Test Results Instrument Size: 77x86x210mm
Measurement Time: 0.5 Second Measuring Range: L*:1-100
Repeatability: Standard Deviation Below 0.1 Measuring Light Source: LED
Languages: English And Chinese Device Weight: 550g (without Battery)

Product Description

Camera View Laboratory Colorimeter YI And WI Measurement For Printing


Introduction:

Food color tester is widely used in different industries such as food,fruit, paint, plastic, printing, weaving and dyeing.It measures the sample color value L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.Our colorimter could work with micro printer to print the testing result anywhere and anytime.
USB 2.0 Paint Color Analyzer , Digital Photo Colorimeter English / Chinese Languages


Specifications:



Type CS-210
Illumination system 8/d(8°/diffused illumination)
SCI
Testing Port Diameter About 8mm
Measuring conditions CIE 10° standard observer; CIE D65 light source

Measuring range
and Display

L*:1-100
Chromaticity Value:L*a*b*,L*c*h,ΔE*ab,relative RGB value
Whiteness:Hunter and Ganz

Yellow:YI

Repeatability Standard deviation within delta E*ab*,below 0.08(testing condition: measure the white calibration board 80 times for average)
Storage 100 sets of standard samples; up to 100 under each standard sample
Measuring time About 0.5 seconds
Measuring light source LED
languages Chinese, English
Power Four AA1.5V Alkaline battery or nickel-metal hydride batterys; Exclusive DC5V adapter
Port USB2.0 printer
Weight 550g
Size 77×86×210mm
Other Function Build-in Micro Camera



Applications:

The colorimeter could be widely used for any industries for color difference measurement especially for plastic, paint, fruit, textile,printing, automobile accessories, etc.
USB 2.0 Paint Color Analyzer , Digital Photo Colorimeter English / Chinese Languages


Competitive Advantage:

CS-210 color tester includes a camera to view the testing area which can easily avoid testing errors.
1). Device sensor exports Japan and information processing chip is from USA, which guarantee the optical signal transfer accuracy and electrical signal stability.
2). Multiple color space display color values : L*a*b,L*c*h,Yxy.
3). Can Test Degree of Whiteness and Yellow Degree
4). Ergonomic Design
5). Free Color Management Software
6). Establish the Prototype Data L*a*b* by manually
7). The device could store 10 standard sample groups and every sample group could store 100 sample data.
8). Can connect to micro-printers for printing


Free Colorimeter QC Software:

Our device is with mature PC management software. It could connect the colorimeter with the PC. With the software, we could save and manage the color data, derive the data, generate testing report, test report printing. It will help the color analysis worker finish the job much easier. (Software english version is also available.)
USB 2.0 Paint Color Analyzer , Digital Photo Colorimeter English / Chinese Languages





Packing List:



Packing Material:Canvas bag with carton box

Packing Size:230x230x240mm

Packing Weight:2.4kgs

Delivery time:3-20 days after payment received.

Qty. Name Qty. Name
1 Main Instrument 1 Power Line
1 Operating Manual 1 USB Cable
1 Driving Software 1 Black/White Calibration Tiles
1 Color QC Software 1 Packing List
