China Portable Color Spectrophotometer manufacturer

High Precision Laboratory Colorimeter Adopts Spectral Measurement Working Theory

Product Details:
Place of Origin: China
Brand Name: CHNSpec
Certification: CE
Model Number: CS-280
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size:29x25x23cm
Delivery Time: 5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now

Detail Information

Illumination System: D/8,SCI Measuring Caliber: 11mm (optional 15mm,4mm,6mm)
Storage: 1000 Test Results Instrument Size: 77x86x210mm
Measurement Time: 2 Second Measuring Range: 0-200%
Repeatability: Below 0.08 Measuring Light Source: LED
Languages: English And Chinese Device Weight: 550g (without Battery)

Product Description

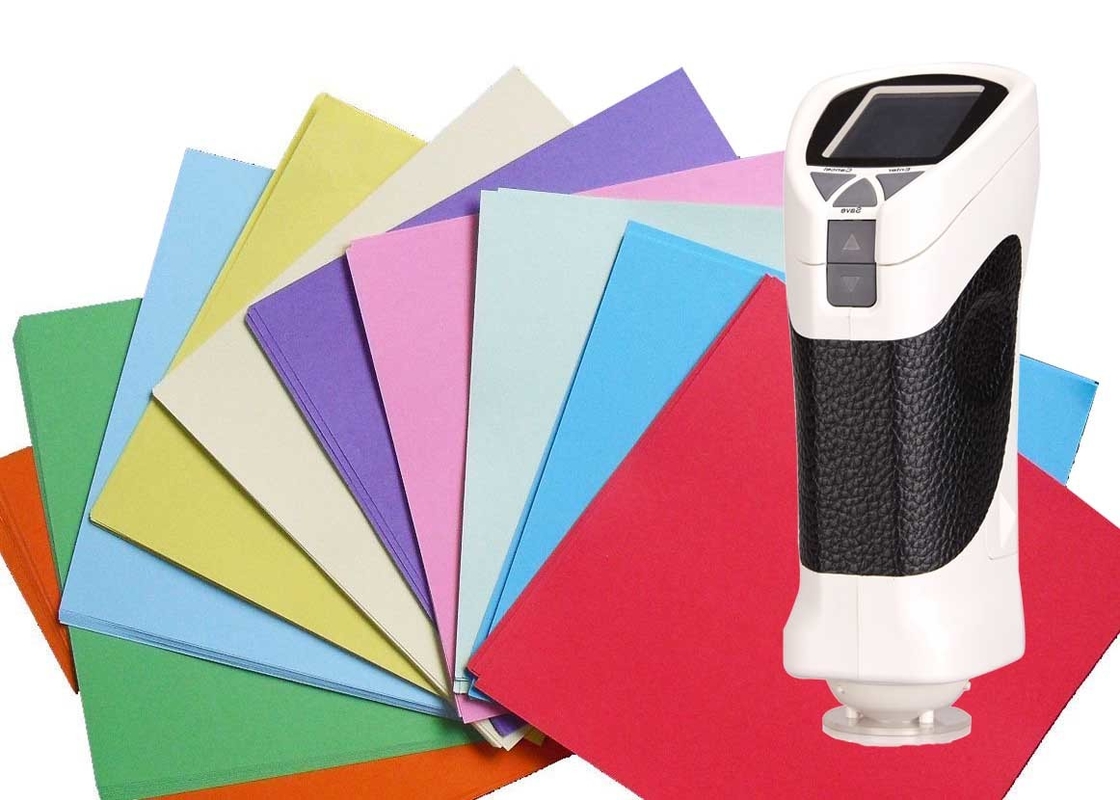

High Precise Color Measurement Car Accessories Spectro Colorimeter





Spectro Colorimeter Introduction



Colorimeter is also called color measurement Instrument.It is widely used in different industries such as skin,comestic,textile,plastic,printing, paint,weaving,dyeing,etc.It measures the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.





Spectro Colorimeter Advantages



1). The highest precision colorimeter

2). Adopts spectral measurement working theory which greatly improve colorimeter accuracy

3). Patented technology guarantees measurement stability

4). Obtain national metrology certification

5). Ergonomic Design

6). Mass storage memory:100 pcs targets and 200 pcs samples





Spectro Colorimeter Technical Data



Type CS-280 CS-280+
Illumination di/8(Diffused Illumination, 8 degree viewing)

Integrating Sphere

Size

Φ40mm
Sensor array sensor
Wavelength 400-700nm
Spectrum Resolution 10nm
Repeatability Standard Deviation ΔE*ab 0.08(when a white calibration plate is measured 30 x at 10-second intervals after calibration)
Observe Angles 2° and 10°
Light Source A,C,D50 and D65
Display Chromaticity value(L*a*b,L*C*h), delta E value, pass/fail, color tendency, average, generate test report
  With camera to see the measurement area
Color Difference ΔE*ab,ΔE*CH
Color Space CIE-L*a*b,L*C*h CIE-L*a*b,L*C*h,XYZ,Yxy
Other

WI(ASTM E313-10,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger,Ganz,Stensby)

YI(ASTM D1925,ASTM E313-00,ASTM E313-73)

Data Storage 20000 samples
Light Source Lifetime 5 years, 1.5 million times
Other Function without camera view, input color swatches
Language Chinese and English
Interface USB2.0
Power Rechargeable Lithium Battery 8.4V/2000mAh, adaptor DC12V
Size 77×86×210mm
Weight About 550g







































































Spectro Colorimeter Longest Guarantee

colored glass colorimeter

a. One Year Guarantee





Spectro Colorimeter Packing List


Packing Material:canvas bag with carton box

Packing Size:290x250x230mm

Packing Weight:1.98kgs

Delivery time:1-5 days after payment received.



paint colorimeter



Qty. Name Qty. Name
1 Main Instrument 1 Power Line
1 Operating Manual 1 USB Cable
1 Driving Software 1 Black/White Calibration Tiles
1 Color QC Software 1 Packing List
