|Test Angle:||60 Degree||Test Range:||0-1000GU|
|Resolution:||0.1GU||Accuracy:||Conform To JJG 696 Standard For First Class Gloss Meter|
|Test Time:||Less Than 0.5s||Data Storage:||100 Standard Samples; 10000 Test Samples|
|Language:||Chinese And English||Battery Capacity:||3000mAh|
paint gloss meter,
gloss measurement units

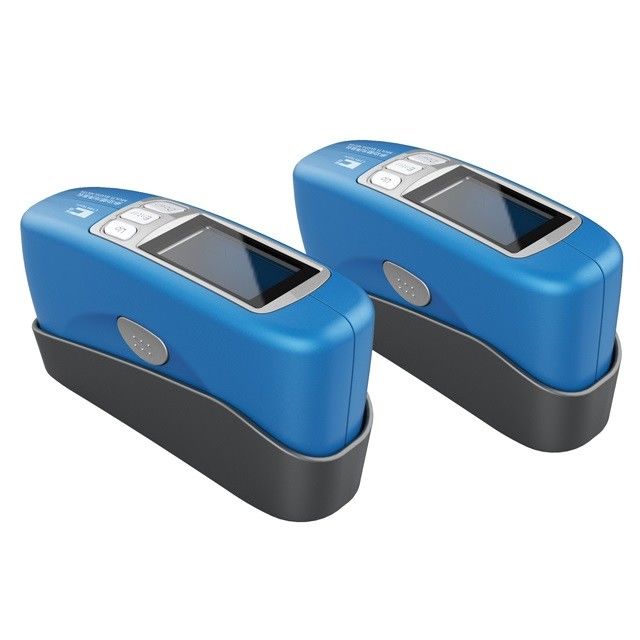

Single Angle 60 Degree Instrument for Gloss Measuring Gloss Meter
Gloss Measuring Gloss Meter Introduction
Gloss Measuring Gloss Meter Advantage
1). High Precision
Our gloss meter adopts sensor from Japan, and processor chip from the US to ensure highly precise of the measured data.Our gloss meters conform to JJG 696 standard for first class gloss meters. Every machine has metrology accreditation certificate from State Key Laboratory of modern metrology and testing instruments and Engineering center of the Ministry of Education in China.
2). Super Stability (Patent Right No.: ZL2012201796876)
Every gloss meter made by us has done the following test:
412 calibration tests;
43200 stability tests;
110 hours of accelerated aging test;
17000 vibration test.
3). Comfortable Grab Feeling
The shell is made by Dow Corning TiSLV material, a desirable elastic material. It is resistant to UV and bacteria and do not cause allergy. This design is for better user experience.
4). Large Battery Capacity
We fully utilized every space of the device and specially custom made advanced high density lithium battery in 3000mAH , which ensures continuous testing for 54300 times.
Gloss Measuring Gloss Meter Technical Data
|Test light spot(mm)||60°:9*15|
|Test modes||Simple mode, standard mode and sample testing mode|
|Accuracy||Conform to JJG 696 standard for first class gloss meter|
|Data storage||100 standard samples; 10000 test samples|
|Language||Chinese and English|
|Battery capacity||3000mAh lithium battery|
|Port||USB, Bluetooth (optional)|
|Working Humidity||<85%, no condensation|
|Accessories||5V/2A charger, USB cable, operating manual, software CD, calibration boards, metrology accreditation certification|
Gloss Measuring Gloss Meter Application
The single angle glossmeters could be widely used for measuring the glossiness of building material, electroplate, plastic products,metal products, ceramic products and automobile accessories, etc.
Packing Material:Foam with carton box
Delivery Time:1-5 working days
|1||Main Instrument||1||Charger Head|
|1||Operating Manual||1||USB Cable|
|1||PC Software||1||Verification Certification|
|1||Packing List||1||Operating Manual|
