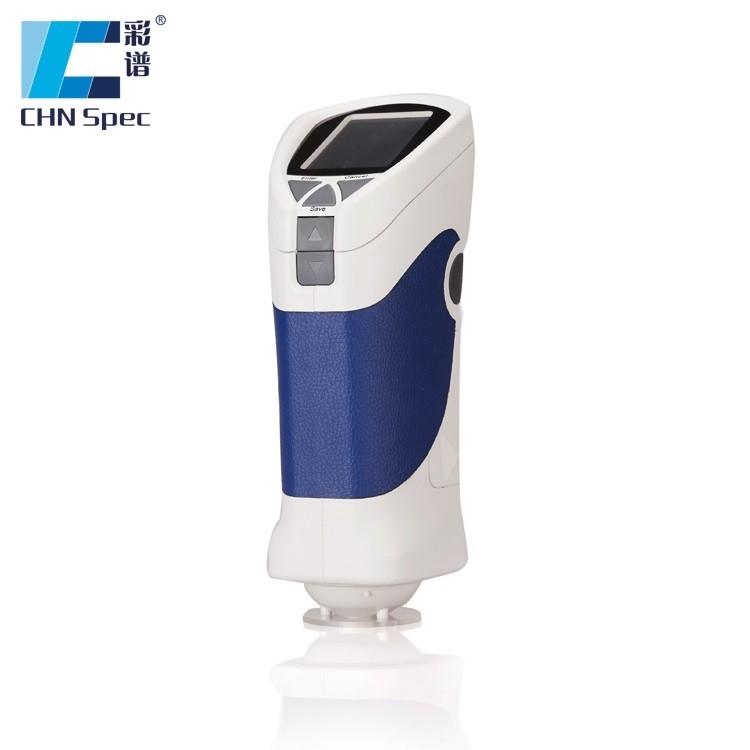

Color Difference Test Paint Colorimeter With D/8 SCI Illumination System

  • Color Difference Test Paint Colorimeter With D/8 SCI Illumination System
  • Color Difference Test Paint Colorimeter With D/8 SCI Illumination System
  • Color Difference Test Paint Colorimeter With D/8 SCI Illumination System
  • Color Difference Test Paint Colorimeter With D/8 SCI Illumination System
  • Color Difference Test Paint Colorimeter With D/8 SCI Illumination System
  • Color Difference Test Paint Colorimeter With D/8 SCI Illumination System
  • Color Difference Test Paint Colorimeter With D/8 SCI Illumination System
Place of Origin China
Brand Name CHN spec
Certification CE
Model Number CS-210
Minimum Order Quantity 1
Price negotiable
Packaging Details Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm
Delivery Time 5-7 days
Payment Terms T/T, Western Union, MoneyGram,Paypal
Supply Ability 1000 per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Illumination System D/8,SCI Measuring Caliber 8mm
Storage 10000 Test Results Measurement Time 0.5 Second
Measuring Range L*:1-100 Repeatability Standard Deviation Below 0.1
Measuring Light Source LED Languages English And Chinese
Device Weight 550g (without Battery) Instrument Color Blue
High Light

Color Difference Test Paint Colorimeter

,

SCI Illumination System Paint Colorimeter

,

D/8 Illumination System Paint Colorimeter
Leave a Message
Product Description

D/8,SCI illumination System Color Difference Test Paint Colorimeter



CS-210 CIELab Color Measurement Paint Colorimeter



Introduction

Paint colorimeter is widely used for measuring paint sample L*a*b*, color difference ΔE and ΔLab according to CIE color space.Beside paint, it can also be widely used in different industries such as plastic,printing,paint,textile and dyeing.

 Color Difference Test Paint Colorimeter With D/8 SCI Illumination System 0


Specifications



Type CS-210
Illumination system 8/d(8°/diffused illumination)
SCI
Measuring conditions CIE 10° standard observer; CIE D65 light source

Measuring range
and Display

L*:1-100
Chromaticity Value:L*a*b*,L*c*h,ΔE*ab,relative RGB value
Whiteness:Hunter and Ganz
Yellowness Index:YI
Repeatability Standard deviation within delta E*ab*,below 0.08(testing condition: measure the white calibration board 80 times for average)
Storage 100 sets of standard samples; up to 100 under each standard sample
Measuring time About 0.5 seconds
languages Chinese, English
Power Four AA1.5V Alkaline battery or nickel-metal hydride batterys; Exclusive DC5V adapter
Port USB2.0 printer
Weight 550g
Size 77×86×210mm
Other Function Build-in Camera



Competitive Advantage

CS-210 paint colorimeter includes a camera to view the testing area which can easily avoid testing errors.
1). Device sensor exports from Japan and information processing chip is from USA, which guarantee the optical signal transfer accuracy and electrical signal stability.
2). Multiple color space display color values : L*a*b,L*c*h,Yxy.
3). Can Test Degree of Whiteness and Yellow Degree
4). Ergonomic Design
5). Establish the Prototype Data L*a*b* by manually
6). The device could store 10 standard sample groups and every sample group could store 100 sample data.
7). Can connect to micro-printers for printing


Free Color QC Software:

Our paint colorimeter is with mature PC management software. It could connect the colorimeter with the PC. With the software, we could save and manage the color data, derive the data, generate testing report, test report printing. It will help the color analysis worker finish the job much easier.


Color Difference Test Paint Colorimeter With D/8 SCI Illumination System 1





Packing List:



Packing Material:Canvas bag with carton box

Packing Size:230x230x240mm

Packing Weight:2.4kgs

Delivery time:3-20 days after payment received.



Qty. Name Qty. Name
1 Main Instrument 1 Power Line
1 Operating Manual 1 USB Cable
1 Driving Software 1 Black/White Calibration Tiles
1 Color QC Software 1 Packing List





Company Information:



Our CHNSpec Technology., Ltd are specialized on manufacturing spectrophotometers, colorimeters and gloss meters. Our products have gotten more than 26 patents including one US patent till now. I believe our quality products will be your better choice. You are warmly welcome to visit and purchase from us.
