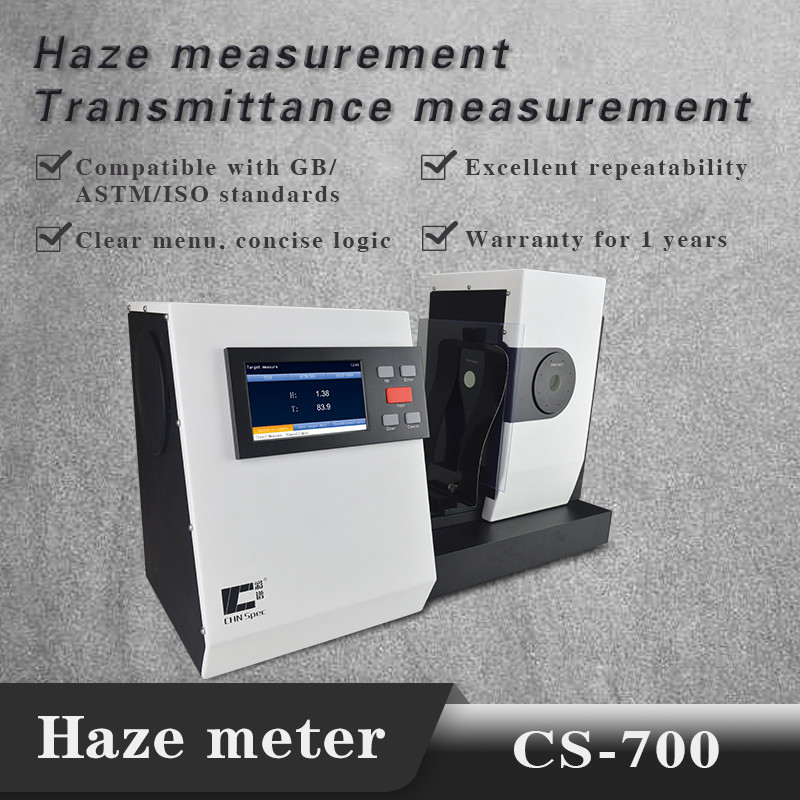

Plastic Pipes Transparency Meter PET Sheet Haze Meter With Free PC Software
| Place of Origin | China |
|---|---|
| Brand Name | CHN spec |
| Certification | CE |
| Model Number | CS-700 |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Inner Box: Foam Package Outer Box: Carton box Size:70x34x56cm |
| Delivery Time | 5-7 days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Instrument Color | White | Product Name | Haze Meter |
|---|---|---|---|
| Application | Glass/Plastic Haze Measurement | Light Source | C,D65 And A |
| Standard | ASTM And ISO | Power | 110-240V |
| Warranty | 1 Year | Function | Haze Measurement |
| Instrument Weight | 7kgs | ||
| High Light | haze meter plastics,transmission haze measurement |
||
Product Description
Plastic Pipes Transparency Meter Transparency Tester, PET Sheet Haze-meter with Free PC Software
Plastic Tranparency Haze-meter Introduction
Transparency is an important character for transpranet materials. The absorption and scattering behavior of the transparent specimen will determine how much light will pass through and how objects will appear through the transparent product.
Transparency can be descibe by two parameters total transmittance and haze. Two different test methods for total transmittance and transmission haze.
ISO 13468 Compensation Method
Haze meter CS-700 contains two standards in one instrument.
Plastic Tranparency Haze-meter Technical Data
| Type | Haze Meter CS-700 |
| Light Source | CIE-A,CIE-C,CIE-D65 |
| Standards | ASTM D1003/D1044,ISO13468/ISO14782 |
| Parameters | HAZE,Transmittance(T) |
| Spectral Response | CIE Luminosity function y |
| Wavelength | 400-700nm |
| Wavelength Interval | 10nm |
| Geometry | 0/d |
| Measurement Area/Sample Port | 16.5mm/21mm |
| Measurement Range | 0-100% |
| Haze Resolution | 0.01 |
| Haze Repeatability | ≤0.1 |
| Sample Size | Thickness ≤150mm |
| Display | 5 inch TFT LCD screen |
| Memory | 20000 value |
| Interface | USB |
| Power | 220V |
| Working Temperature | 10-40 ℃ |
| Storage Temperature | 0-50 ℃ |
| Size (LxWxH) | 598mm X 247mm X 366mm |
| Standard Accessory | PC software (Color QC) |
| Optional | Measurement Fixture, Haze standard film |
Haze Measurement Instrument Advantages
1). Three kinds of light sources A,C and D65 for haze measurement.
2). It can realize transmittance compensation measurement which can provide higher accuracy test result.
3). Open measurement area, no limit on sample size. Vertical measurement is also available.
4). Different fixtures to meet the measurement requirement for sheet material and liquid in different shapes.
5). Conform to ASTM and ISO standard.
Haze Meter Packing List
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Adaptor |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Haze QC Software | 1 | 0% Calibration Cover |
| 1 | Compensation Port Cover | 1 | Warranty Card |
