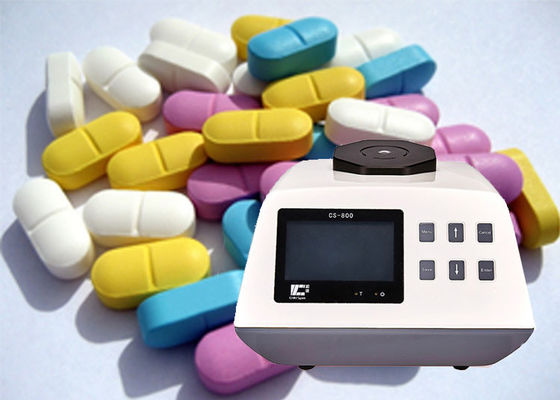

CLEDs Light Source Colour Measurement Spectrophotometer 350*300*200mm Size
| Place of Origin | China |
|---|---|
| Brand Name | CHN spec |
| Certification | CE |
| Model Number | CS-800 |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Size: 54x45x31cm Material: inner box: canvas bag outer box: Carton box |
| Delivery Time | 5-7 days |
| Payment Terms | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 1000 per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Illumination Light Source | CLEDs | Sensor | Dual Light Path Sensor Array |
|---|---|---|---|
| Reflectivity Range | 0-200% | Reflectivity Resolution | 0.01% |
| Machine Weight | 4.5kgs | Machine Packing Size | 350*300*200mm(L*W*H) |
| Usage | Textile Color Reading Machine | Interface | USB |
| Data Storage | 20000 Test Results | Display | 5 Inches Color Screen |
| High Light | double beam spectrophotometer,led light spectrometer,CLEDs Light Source Spectrophotometer |
||
Product Description
High Quality Top-port Caliber Color Measurement Spectrophotometer Price
Introduction:
CS-800 is a highly performance spectrophotometer with test caliber upward. The instrument adopts the geometric conditions of D/8 lighting and observation of CIE recommendations, integration of the full band LED composite light source, double beam optical system, ETC every-time calibration technology, spectral reflectance standard deviation within 0.08, maximum of colorimetric values ΔE*ab is 0.03, to provide all the necessary color formula. It could be widely used for coating, printing, textile, meet plastic, food, medicine, automobile field to meet customers’ measurement requirement.
Specifications:
| Type | CS-800 | |
| Illumination | d/8(Diffused lighting, 8 degrees observe angle)(conform to CIE No.15, ISO 7724/1, ASTM E1164, DIN 5033 Teil7, JIS Z8722 Condition c standards) | |
| Size of integrating sphere | Φ40mm,Alvan diffused reflection surface coating | |
| Wavelength range | 400-700nm | |
| Wavelength interval | 10nm | |
| Half spectral width | 5nm | |
| Observation angle | 2°/10° | |
| Measurement light source | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF | |
| Data being displayed | SPD distribution/data, sample's color values, color difference values/graph, pass/fail results, color error tendency, color simulation, display measurement area,history data color simulation, manual input standard sample, generate measurement report | |
| Measurement time | About 1 second | |
| Measurement time interval | 0.5 second | |
| Measuring caliber | Φ11mm | |
| Color space | CIE-L*a*b,L*C*h,L*u*v,XYZ,Yxy,reflectivity,Hunterlab,Munsell MI,CMYK | |
| Color difference formulas | ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00,ΔEab(Hunter),555,color classification | |
| Other colorimetric indices | WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger Stensby),YI(ASTM D1925,ASTM E313-00,ASTM E313-73), | |
| Repeatability | light splitting reflectivity: standard deviation within 0.08% | |
| color values:ΔE*ab<=0.015(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals),Maximum: 0.03 | ||
| Battery capacity | rechargeable, 20000 continuous tests, 7.4V/6000mAh | |
| Data storage | 40000 test results | |
| Light source longevity | 5 years, 1.5 million tests | |
| Inter-instrument agreement | ΔE*ab within 0.2 (BCRA color charts II, average of the 12 charts) | |
| Work temperature range | 0~45℃, relative humidity 80% or below(at 35°C), no condensation |
Competitive Advantage:
1). Solid samples (steel, cloth) can be placed directly on the measurement port, particles (tablets, master batch), powder (pigment, coffee), paste objects (tomato sauce) can be placed in a petri dish, and then placed in the measurement port.
2. D8 Structure
Our device adopts internationally agreed observe condition D/8 (Diffused lighting, 8 degrees observe angle) and SCI(specular reflection included)/SCE(specular reflection excluded).
3. Can Measure SCI and SCE at the same time
4. ETC Technology (Every Test Calibration)
5. Color Analysis Software
Our spectrophotometer comes with the color management software, which is applicable in various industries’ quality control and management of color data. It turns color into numerical data, compares color differences, generates measurement reports. provides measurement data under different color spaces and customizes color management for each customer.
Company Information
Our CHNSpec Technology., Ltd are specialized on manufacturing spectrophotometers, colorimeters and gloss meters. Our products have gotten 10 Invention Patents including 1 American Invention Patent, 8 Utility Model Patents, 4 Appearance Patents and 3 Software Copyrights till now. If any need or questions about our products, please do not hesitate to contact me. You are warmly welcome to visit and purchase from us.
