10nm Wavelength Interval Portable Color Spectrophotometer With Build In Camera Observation Angle 2°/10°

  • 10nm Wavelength Interval Portable Color Spectrophotometer With Build In Camera Observation Angle 2°/10°
  • 10nm Wavelength Interval Portable Color Spectrophotometer With Build In Camera Observation Angle 2°/10°
  • 10nm Wavelength Interval Portable Color Spectrophotometer With Build In Camera Observation Angle 2°/10°
  • 10nm Wavelength Interval Portable Color Spectrophotometer With Build In Camera Observation Angle 2°/10°
  • 10nm Wavelength Interval Portable Color Spectrophotometer With Build In Camera Observation Angle 2°/10°
  • 10nm Wavelength Interval Portable Color Spectrophotometer With Build In Camera Observation Angle 2°/10°
  • 10nm Wavelength Interval Portable Color Spectrophotometer With Build In Camera Observation Angle 2°/10°
Place of Origin China
Brand Name CHN spec
Certification CE
Model Number CS-580
Minimum Order Quantity 1
Price negotiable
Packaging Details Inner Box: Foam Package Outer Box: Carton box Size:29x25x23cm
Delivery Time 5-7 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000 per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Light Source LED Sensor Dual Light Path Sensor Array
Wavelength Interval 10nm Half Spectral Width 5nm
Reflectivity Range 0-200% Reflectivity Resolution 0.01%
Measurement Time Interval 2s Interface USB
Data Storage 20000 Test Results Working Temperature 0-45℃
High Light

colour measurement spectrophotometer

,

color spectrum analyzer

,

10nm Wavelength Color Spectrophotometer
Leave a Message
Product Description

Handheld Color Matching Spectrophotometer Paint Color Measuring Meter



Our device adopts internationally agreed observe condition D/8 (Diffused lighting, 8 degrees observe angle) and SCI(specular reflection included)/SCE(specular reflection excluded). It could be used for color matching for many industries and widely used in painting industry, textile industry, plastic industry, food industry, building material industry and other industries for quality control.



1. Paint Color Measuring Meter Introduction

Our paint color measuring meter adopts high technology from overseas. It tests based on the condition of D/8 that is highly recommend by CIE. It can be widely used for color measurement for most industries such as painting,textile,food,plastic and other products’ color quality control.It could connect with color matching software to get recipes.





2. Paint Color Measuring Meter Advantages

1). Easy to operate

2). Instrument is with build-in camera to view measurement area

3). Adopt LED light source

4). 6000mAh rechargeable lithium-ion battery

5). Can measure both SCI(specular included)and SCE(specular excluded) at the same time

6). Can connect with micro-printers for printing results anywhere

7). Large data storage space: 100 pcs target; 200 pcs samples





3. Paint Color Measuring Meter Application

Paint color measuring meter can be used in paint factory and laboratory for color matching guide. It can also conenct with color matching software to get paint formular.





4. Paint Color Measuring Meter Technical Data

Type CS-600
Illumination d/8(Diffused lighting, 8 degrees observe angle),SCI(specular reflection included)/SCE(specular reflection excluded)simultaneous measurement
Size of integrating sphere Φ40mm
Illumination Light source CLEDs
Wavelength Range 400-700nm
Wavelength Interval 10nm
Reflectivity range 0-200%
Observation angle 2°/10°
Measurement light source A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF
Measurement time interval  2s
Measurement time 2s
Color space CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance
Color difference formulas ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00, ΔEab(Hunter),555,color classification
Other colorimetric indices

WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby); YI(ASTM D1925,ASTM E313-00,ASTM E313-73);Tint(ASTM E313,CIE,Ganz)

Metamerism index Milm, Stick color fastness, Color fastness
Repeatability light splitting reflectivity:standard deviation within 0.08%

color values:ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals),

Maximum:0.05
Inter-instrument agreement ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts)
Size 181*73*112mm(L*W*H)
Weight about 550g(does not include battery's weight)
Work temperature range 0~45℃, relative humidity 80% or below( at 35°C ),no condensation

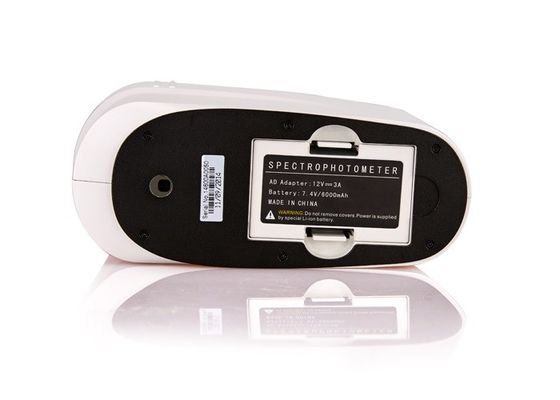

5. Paint Color Measuring Meter Pictures

color reading machine
