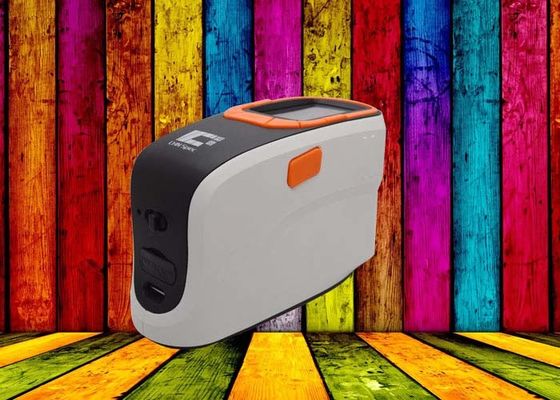

550g Weight Spectrophotometer For Color Matching , Paint Color Analyzer Good Accuracy
| Place of Origin | China |
|---|---|
| Brand Name | CHN spec |
| Certification | CE |
| Model Number | CS-610 |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Inner Box: Foam Package Outer Box: Carton box Size:29x25x23cm |
| Delivery Time | 5-7 days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Illumination Light Source | CLEDs | Sensor | Dual Light Path Sensor Array |
|---|---|---|---|
| Wavelength Interval | 10nm | Half Spectral Width | 5nm |
| Reflectivity Range | 0-200% | Reflectivity Resolution | 0.01% |
| Measurement Time Interval | 2s | Measurement Time | 0.5s |
| Interface | USB | Data Storage | 20000 Test Results |
| Measurement Range | 0-200% | Battery Capacity | 7.4V/6000mAh Rechargeable |
| Instrument Size | 181*73*112mm(L*W*H) | Weight | 550g |
| High Light | colour matching spectrophotometer,color spectrum analyzer,550g Weight Spectrophotometer |
||
Product Description
Hot Sales Portable Fabric Yarn Textile Color Measurement Instrument
1. Textile Color Measurement Instrument Introduction
Our spectrophotometers is with D/8 geometry and adopts high technology from overseas.Our device is widely used for color measurement of textile, fabric, yarn, textile dyeing and other products’ color quality control. It can help to do color communication and guide for color matching.
2. Textile Color Measurement Instrument Specifications
| Type | CS-610 |
| Illumination | diffuse illumination/8 degree viewing |
| integrating sphere size | Φ40mm |
| Wavelength range | 400-700nm |
| Wavelength interval | 10nm |
| Observation angle | 2°/10° |
| Measurement light source | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF |
| Measurement time | 1 second |
| Color space |
CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance Hunterlab,Munsell MI,CMYK,RGB,HSB |
| Color difference index |
ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00 ΔEab(Hunter),555,color classification |
| Other |
WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby); YI(ASTM D1925,ASTM E313-00,ASTM E313-73);Tint(ASTM E313,CIE,Ganz) Metamerism index Milm, Stick color fastness, Color fastness ISO luminance, 8 gloss, A density, T density, M density, E density |
| Repeatability | light splitting reflectivity:standard deviation within 0.08% |
|
color values:ΔE*ab<=0.02 Maximum:0.04 |
|
| Interface | USB |
| Light source longevity | 5 years, 1.5 million tests |
| Inter-instrument agreement | ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts) |
| Work temperature range | 0~45℃, relative humidity 80% or below( at 35°C ),no condensation |
3. Textile Color Measurement Instrument Applications
It can be applied to textile laboratories and factories and others field for textile color testing;
Allows medium and small companies to obtain high performance color management system;
It can be widely used for textile fiber, yarn, fabric and dyeing material color measurement.
4. Textile Color Measurement Instrument Advantage
1). Can measure both SCI(specular included)and SCE(specular excluded) at the same time
2). Free PC software
3). Can connect to micro-printers for printing
4). Professional horizontal design and it does not have any moving parts, which avoids the shaking of the instrument during measurement process. This makes the measurement more accurate
5). PC software for easy measurement data management
6). Large data storage space: can store up to 100 sets of standard samples, with up to 200 measurement records for each standard sample
7). It is with pantone color number matching function. After measurement it could match 3 pantone color number which is similar color to the sample.
5. Leather Color Spectrophotometer Packing Information
Packing Material:Canvas bag with carton box
Packing Size:290x250x230mm
Packing Weight:1.98kgs
Delivery time:3-10 days after payment received.
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Line |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Driving Software | 1 | Black/White Calibration Tile |
| 1 | Color QC Software | 1 | Verification Certification |
| 1 | Packing List | 1 | Warranty Card |
