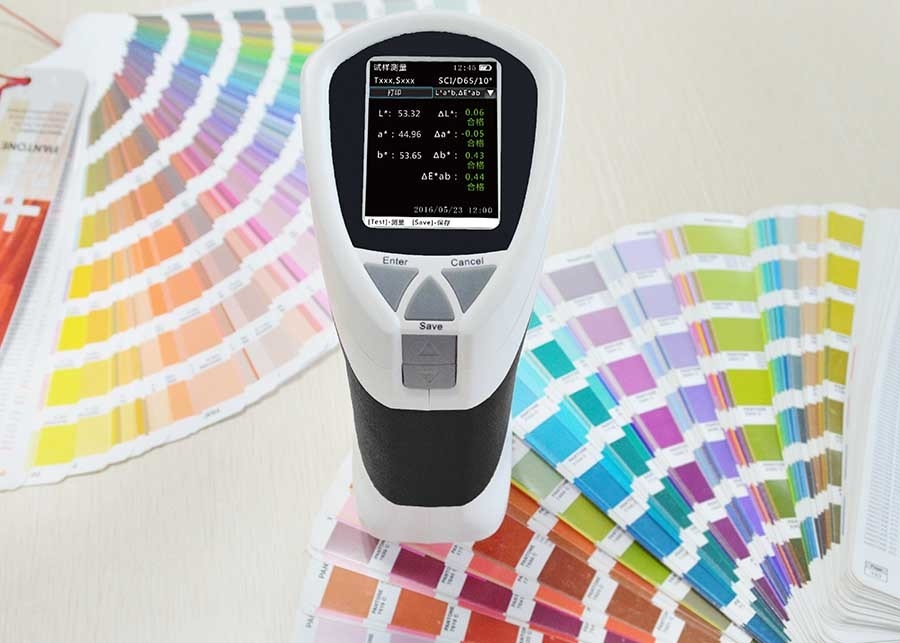

ISO Brightness Colour Measurement Device 77x86x210mm Instrument Size
| Place of Origin | China |
|---|---|
| Brand Name | CHN spec |
| Certification | CE |
| Model Number | CS-280 |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm |
| Delivery Time | 5-7 days |
| Payment Terms | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 1000 per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Illumination System | D/8,SCI | Measuring Caliber | 11mm (optional 15mm,4mm,6mm) |
|---|---|---|---|
| Storage | 1000 Test Results | Instrument Size | 77x86x210mm |
| Measurement Time | 2 Second | Measuring Range | 0-200% |
| Repeatability | Below 0.08 | Measuring Light Source | LED |
| Languages | English And Chinese | Device Weight | 550g (without Battery) |
| High Light | colour measurement device,paint color analyzer |
||
Product Description
ISO Brightness Tester Laboratory Colorimeter Car Paint Matching Machine
Introduction:
Colorimeter is also called color measurement Instrument.It is widely used in different industries such as skin,comestic,textile,plastic,printing, paint,weaving,dyeing,etc.It measures the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.The colorimeter could be widely used for any industries for color difference measurement especially for plastic, paint, fruit, textile,printing, automobile accessories, etc.
Specifications:
| Type | CS-280 | CS-280+ |
| Illumination | di/8(Diffused Illumination, 8 degree viewing) (conform to CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standard) |
|
| Size of integrating sphere | Φ40mm, Avian diffused reflection surface coating | |
| Illumination Light source | CLED | |
| Sensor | array sensor | |
| Wavelength | 400-700nm | |
| Spectrum Resolution | 10nm | |
| Measurement Time | 2s | |
| Measurement Aperture | 11mm,optional 4mm,6mm,15mm | |
| Repeatability | Standard Deviation ΔE*ab 0.08(when a white calibration plate is measured 30 x at 10-second intervals after calibration) | |
| Observe Angles | 2° and 10° | |
| Light Source | A,C,D50 and D65 | |
| Display | Chromaticity value(L*a*b,L*C*h), delta E value, pass/fail, color tendency, average, generate test report | |
| With camera to see the measurement area | ||
| Color Difference Formula | ΔE*ab,ΔE*CH | |
| Color Space | CIE-L*a*b,L*C*h | CIE-L*a*b,L*C*h,XYZ,Yxy |
| Other |
WI(ASTM E313-10,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger,Ganz,Stensby) |
|
| Data Storage | 20000 samples | |
| Light Source Lifetime | 5 years, 1.5 million times | |
| Other Function | without | camera view, input color swatches |
| Screen | Panchromatic True Color Screen | |
| Language | Chinese and English | |
| Interface | USB2.0 | |
| Operating Temperature | 5~45℃, relative humidity 80% or below( at 35°C ),no condensation | |
| Storage temperature range | -25℃ to 55℃,relative humidity 80% or below(at 35°C ),no condensation | |
| Power | Rechargeable Lithium Battery 8.4V/2000mAh, adaptor DC12V | |
| Size | 77×86×210mm | |
| Weight | About 550g | |
| Standard Accessories | adapter, operating manual, color management software, drive software, electronic manual, color management guide, USB cable, black/white calibration tube, protective cover, portable bag, electronic color charts | |
| Optional | Micro Printer | |
| Color Matching System | Not matched | |
| UV Light Source | without | |
Competitive Advantage:
1). Spectro colorimeter:The highest precision colorimeter
2). Adopts spectral measurement working theory which greatly improve colorimeter accuracy
3). Patented technology guarantees measurement stability
4). Obtain national metrology certification
5). Ergonomic Design
6). Mass storage memory:100 pcs targets and 200 pcs samples
7). Optional accessories for different functions
8). SCS optional engine
9). Automatic gloss compensation technology
10). Every test calibration technology
11). Adopt CLEDs light source---spectrally balanced LED light source
Colorimeter Free Color QC Software:
Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.
Packing List:
Packing Material:Canvas bag with carton box
Packing Size:230x230x240mm
Packing Weight:2.4kgs
Delivery time:3-20 days after payment received.
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Line |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Driving Software | 1 | Black/White Calibration Tiles |
| 1 | Color QC Software | 1 | Packing List |
