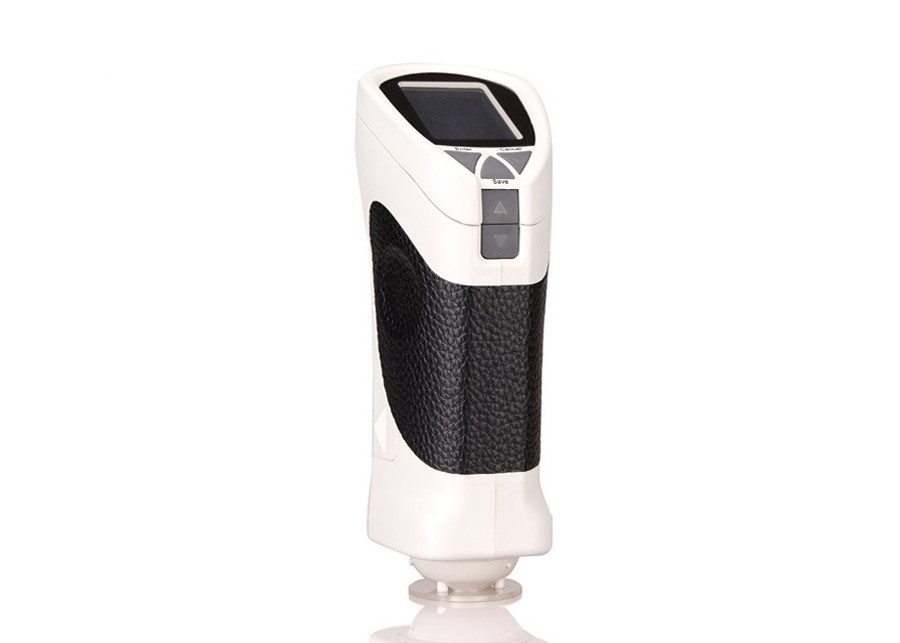

Cost Effective Laboratory Colorimeter YI Measurement Color Analysis Meter For Plastic

Place of Origin China
Brand Name CHN spec
Certification CE
Model Number cs-200
Minimum Order Quantity 1
Price negotiable
Packaging Details Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm
Delivery Time 5-7 days
Payment Terms T/T, Western Union, MoneyGram,Paypal
Supply Ability 1000 per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Illumination System 8/D,SCI Measuring Caliber 8mm
Storage 10000 Test Results Instrument Size 77x86x210mm
Measurement Time 0.5 Second Measuring Range L*:1-100
Repeatability Below 0.08 Measuring Light Source LED
Languages English And Chinese Device Weight 550g (without Battery)
High Light

colorimeter device

,

color testing equipment

Leave a Message
Product Description

Cost Effective Laboratory Colorimeter YI Measurement Color Analysis Meter For Plastic





Introduction



Our spectrophotometer is designed for measuring color.It adopts high technology from overseas.It tests based on the condition of D/8 that is internationally used.It is widely used for color measurement of any industry especially for chemical,paint,textile, plastic,food,building material and other products’ color quality control.It could work with micro printer for printing testing result anywhere.Spectrophotometer can provide reflectacne data of 30 wavelengths spaced at 10nm intervals between 400-700nm.



Cost Effective Laboratory Colorimeter YI Measurement Color Analysis Meter For Plastic 0



Specifications



Type CS-200
Illumination system 8/d(8°/diffused illumination)
SCI
Testing Aperture Diameter 8mm (option 4mm)
Measuring conditions CIE 10° standard observer; CIE D65 light source

Display



Chromaticity Value:L*a*b*,L*c*h,ΔE*ab,relative RGB value

YI (yellowness index) and WI (whiteness index)

Measuring range L*:1-100
Repeatability Standard deviation within delta E*ab*,below 0.08(testing condition: measure the white calibration board for average)
Storage 100 sets of standard samples; up to 100 under each standard sample
Measuring time About 0.5 seconds
Measuring light source LED
languages Chinese, English
Power Four AA1.5V Alkaline battery or nickel-metal hydride batterys; Exclusive DC5V adapter
port USB2.0 printer
weight 550g
Size 77×86×210mm





Applications



It can be applied to laboratories, factories and others field that need color testing;

Allows medium and small companies to obtain high performance color management system;

The following are some of the application of our Spectrophotometers:

Cost Effective Laboratory Colorimeter YI Measurement Color Analysis Meter For Plastic 1





Competitive Advantage



1).National Metrology Accreditation

2).High Quality & Reasonable Price

3).Chinese / English Language Switching

4).Higher Accurate and Stable Performance

5).PC Software for Data Management

6).Mass Storage Memory

7).Average for Multi Points Measurement

8).For YI and WI Measurement

9).Low power consumption,USB or Bluetooth(optional) for data transfer

10).Best choice for color evaluation and data management





Free Color Management Software



Our device is with mature PC management software. It could connect the colorimeter with the PC. With the software, we could save and manage the color data, derive the data, generate testing report, test report printing. It will help the color analysis worker finish the job much easier.



Cost Effective Laboratory Colorimeter YI Measurement Color Analysis Meter For Plastic 2





Packing List:



Packing Material:Canvas bag with carton box

Packing Size:230x230x240mm

Packing Weight:2.4kgs

Delivery time:3-20 days after payment received



Qty. Name Qty. Name
1 Main Instrument 1 Power Line
1 Operating Manual 1 USB Cable
1 Driving Software 1 Black/White Calibration Tiles
1 Color QC Software 1 Packing List
